SADP16 Air Displacement Pipettes

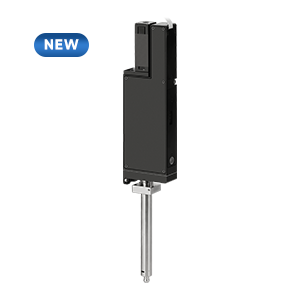

SADP16 Air Displacement Pipette

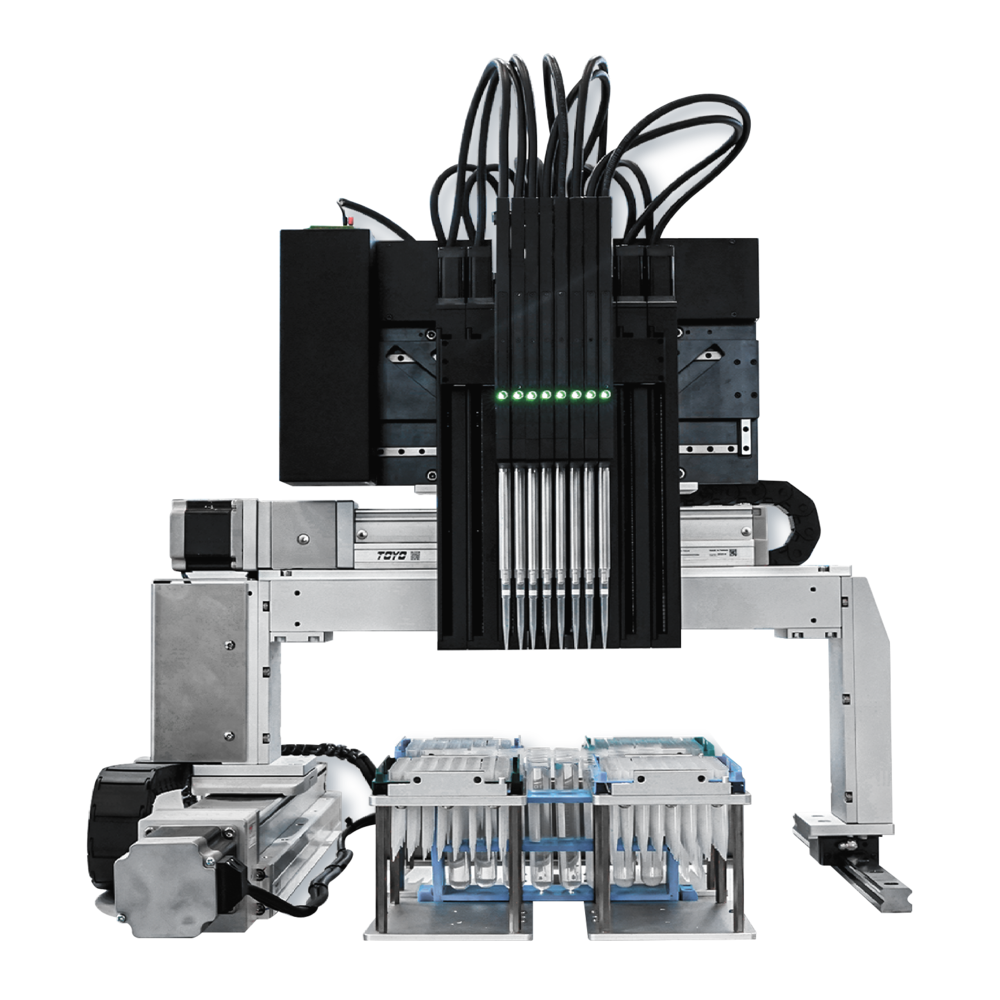

SADP16 (Superb Air Displacement Pipette 16) supports multi-channel configuration with tip-to-tip spacing up to 9mm. It features advanced functions including liquid level detection, clot detection, and aspiration of air detection, ensuring precision and efficiency. The module has a lifetime of over 1 million cycles and supports disposable tips to reduce cross-contamination. This versatile pipetting module is ideal for medical devices, laboratory instruments, and environmental analyzers.

Key Parameters:

Reference Model:

SADP16

SPEC

Online Browsing Download

WhatsApp Contact

Online Message

E-mail Comparison/Performance

SADP16 Air Displacement Pipette

Comparable Products

SADP13 Air Displacement Pipette

SADP18P Air Displacement Pipette

SADP18 Air Displacement Pipette

SADP20 Air Displacement Pipette

SADP28 Air Displacement Pipette

Comparison/Performance

Back

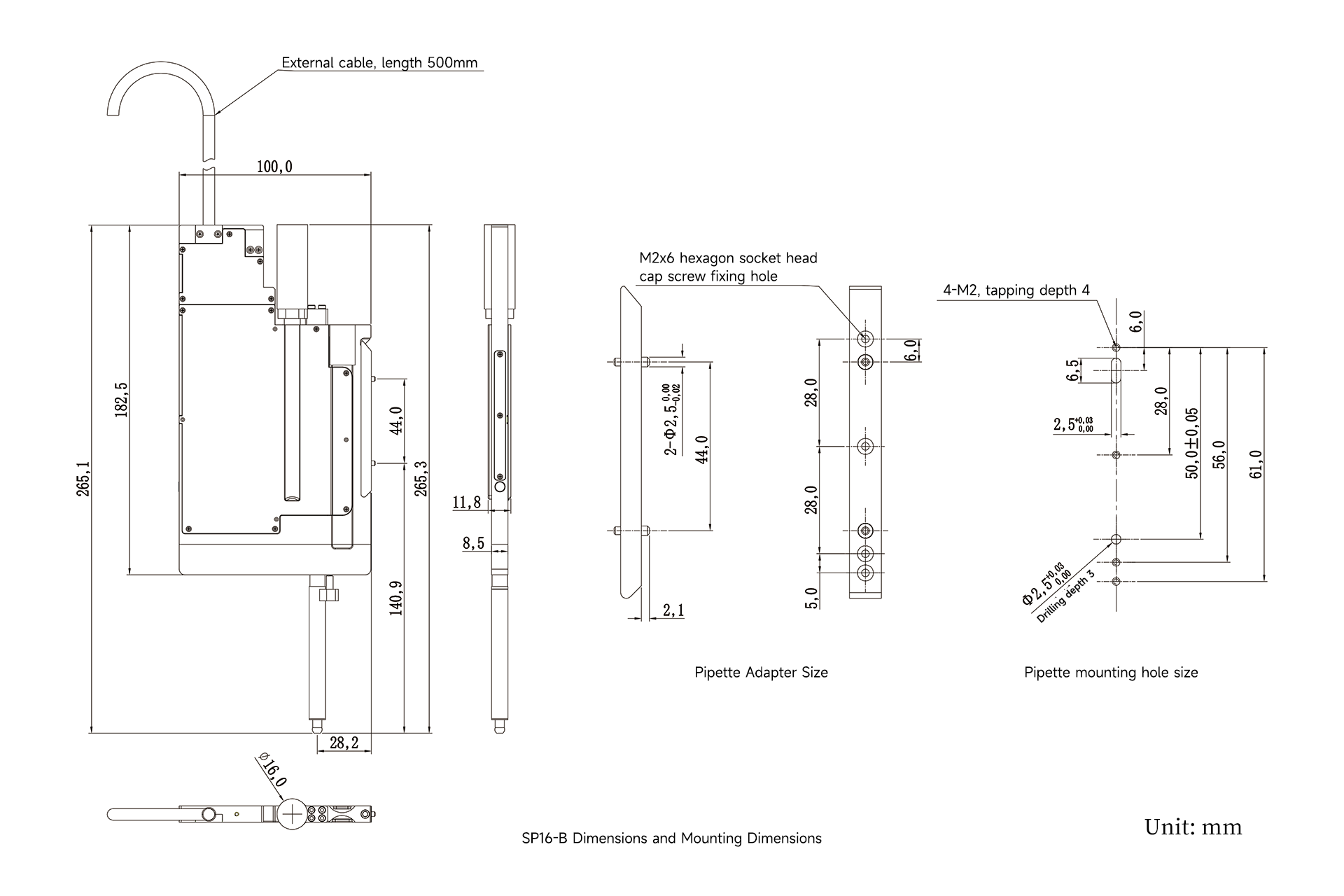

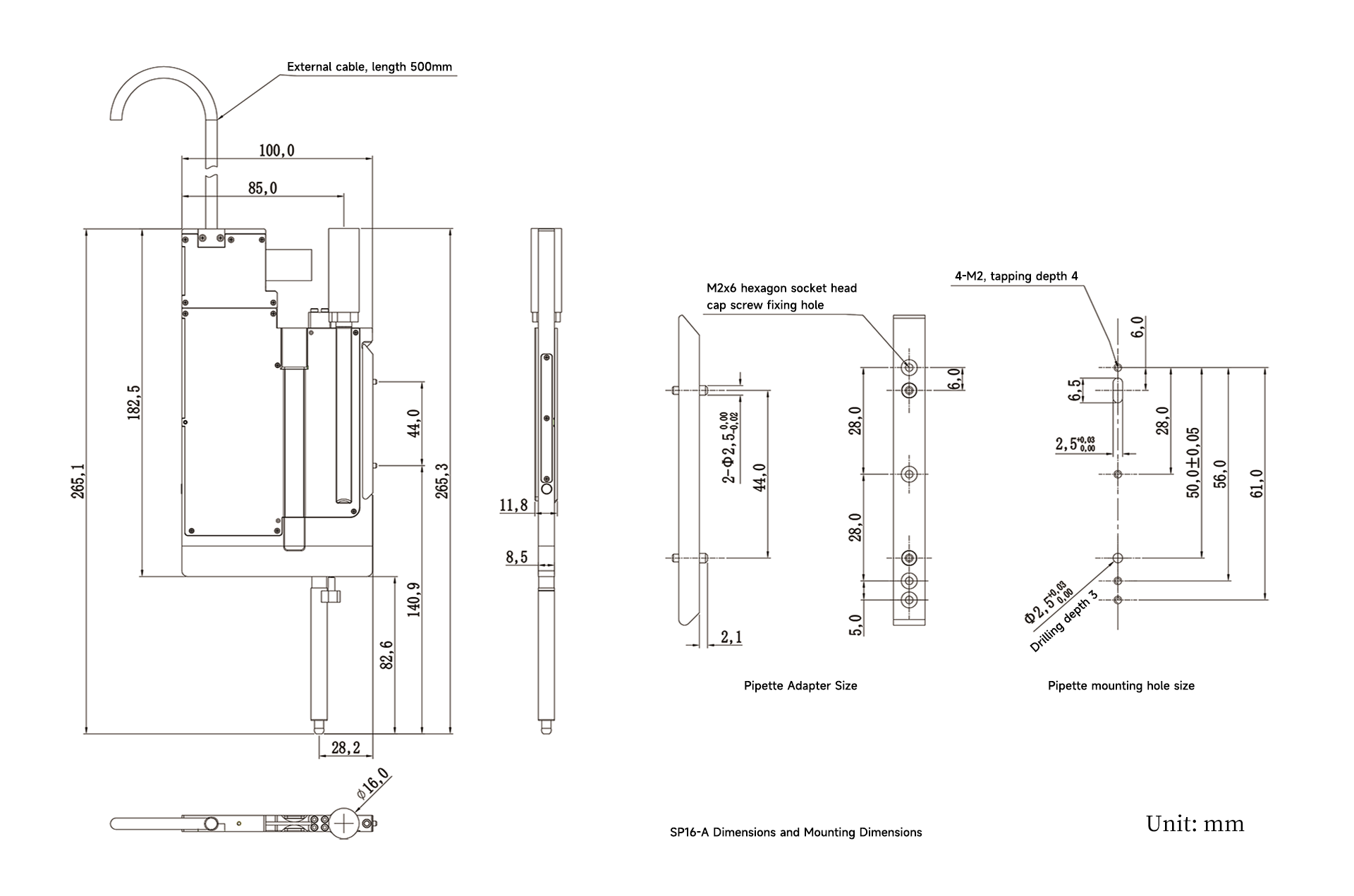

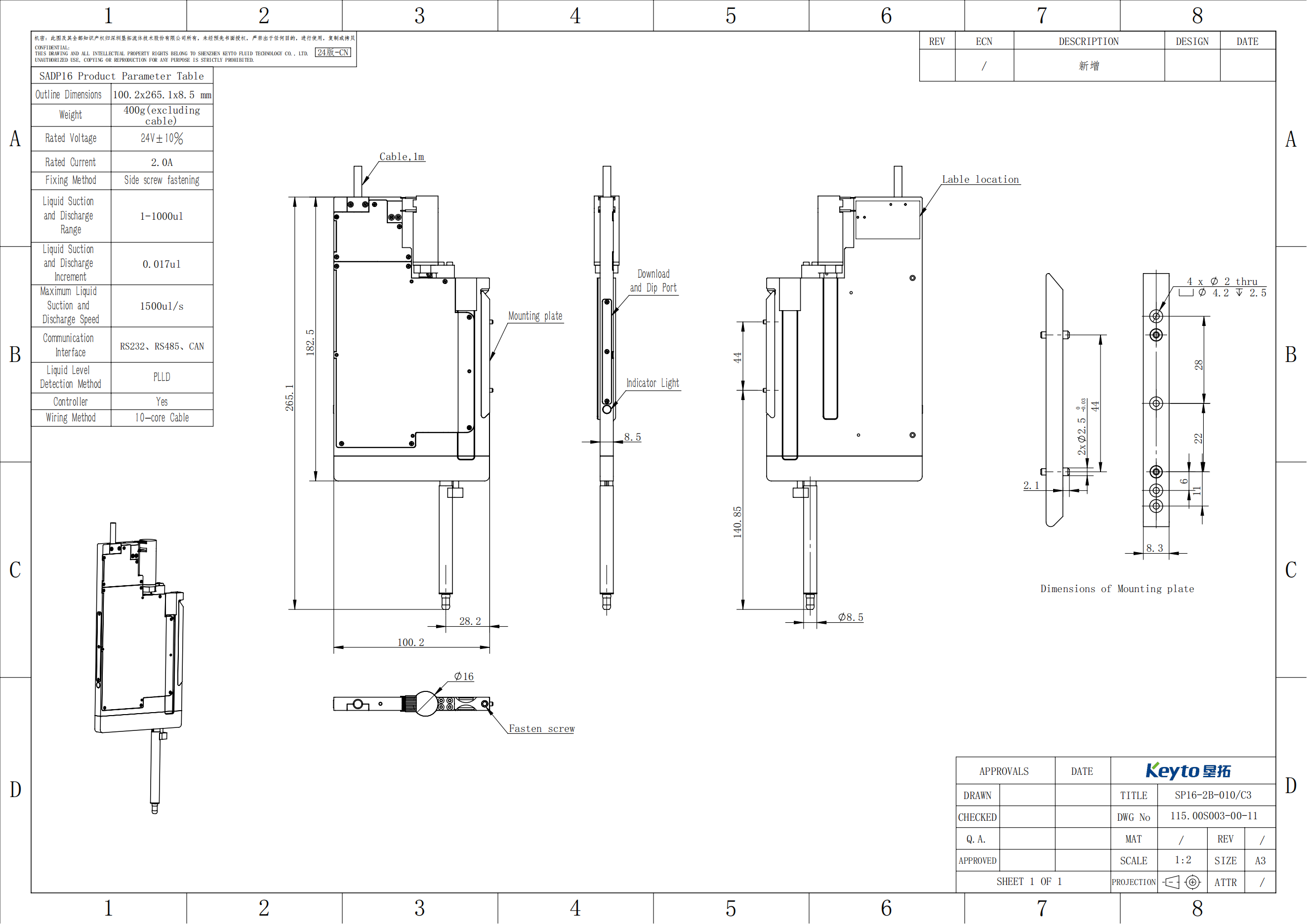

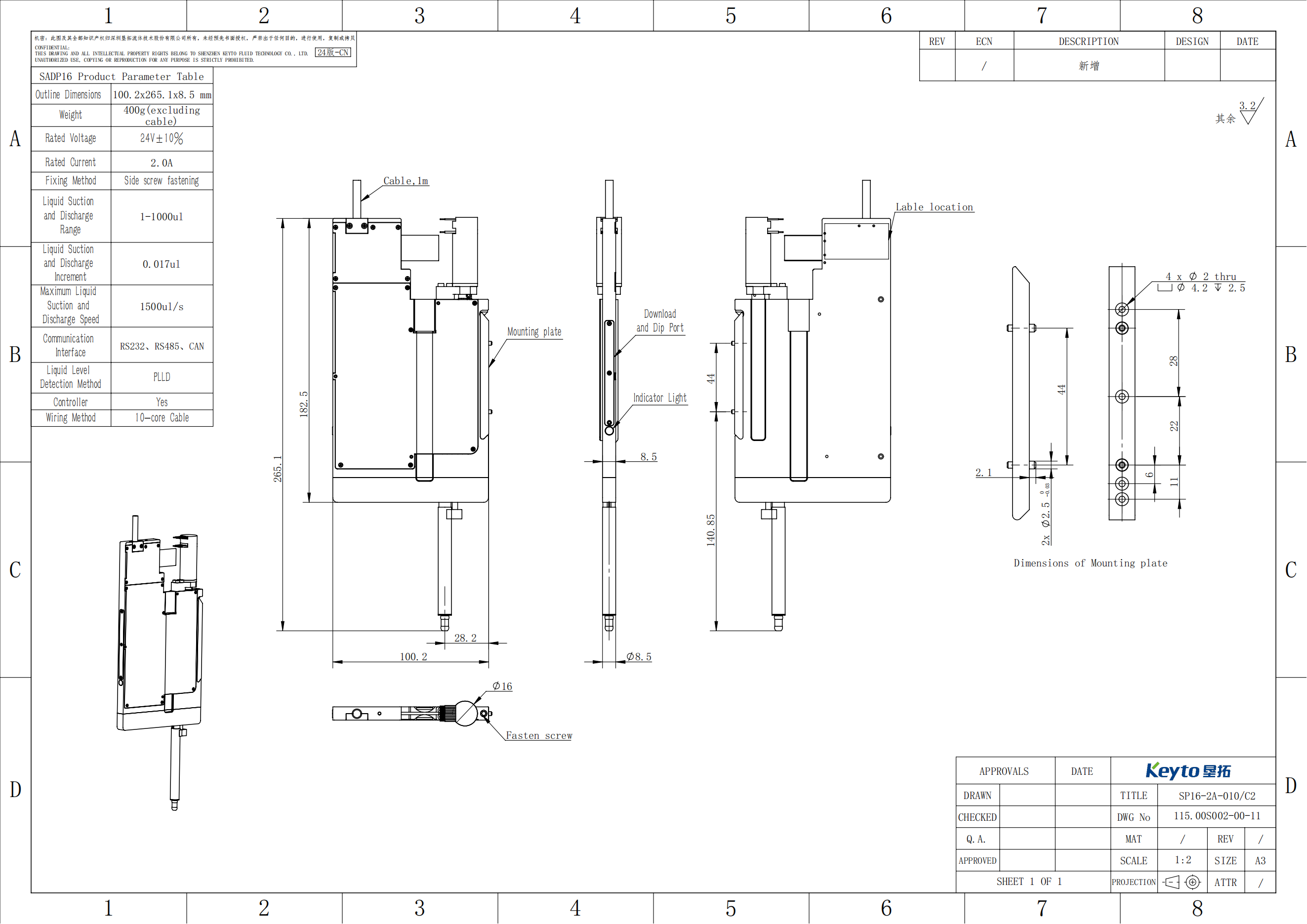

Drawings

Specifications

Overview

2D View

3D View

SADP16 Air Displacement Pipette

Model	SADP16
Cable	Flexible towline cable
Structure	Plunger
Liquid Level Detection	pLLD
Function	1.Automatic pick-up, eject the tips(require Z-axis) 2.Tip presence sensor 3.Liquid level detection 4.Liquid level following(require Keyto Z-axis) 5.Clot detection 6.Anti-droplet control 7.Bubbles/foam detection 8.Aspiration of air detection
Pipetting Range	1ul-1ml
Fastest Aspirete and Dispense Speed	2000ul/s
Fastest Liquid Level Detection Speed	10ms
CV at Minimum Dispense Volume @50ul tip	1ul, 5%
CV%, Dispense 5 ul @50ul tip	2%
CV%, Dispense 10 ul @200ul tip	2%
CV%, Aliquot Dispense 20 ul @1000 ul tip	3%
Tip Volume	10μL/50μL/200μL/1000μL
Minimum Tip-to-tip Spacing	9mm
Communication	RS-232, RS-485, CAN
Motor	Coreless brushless motor
Z-axis compatible	Z180
Movement mechanism compatible	Y
Aspiration Monitor	Y
Lifetime	1 Million Cycles
Power	24VDC
Max Pipetting Units	8 units
Dimensions	26510016 mm
Weight	≤330g
