Pipette variable pitch axis

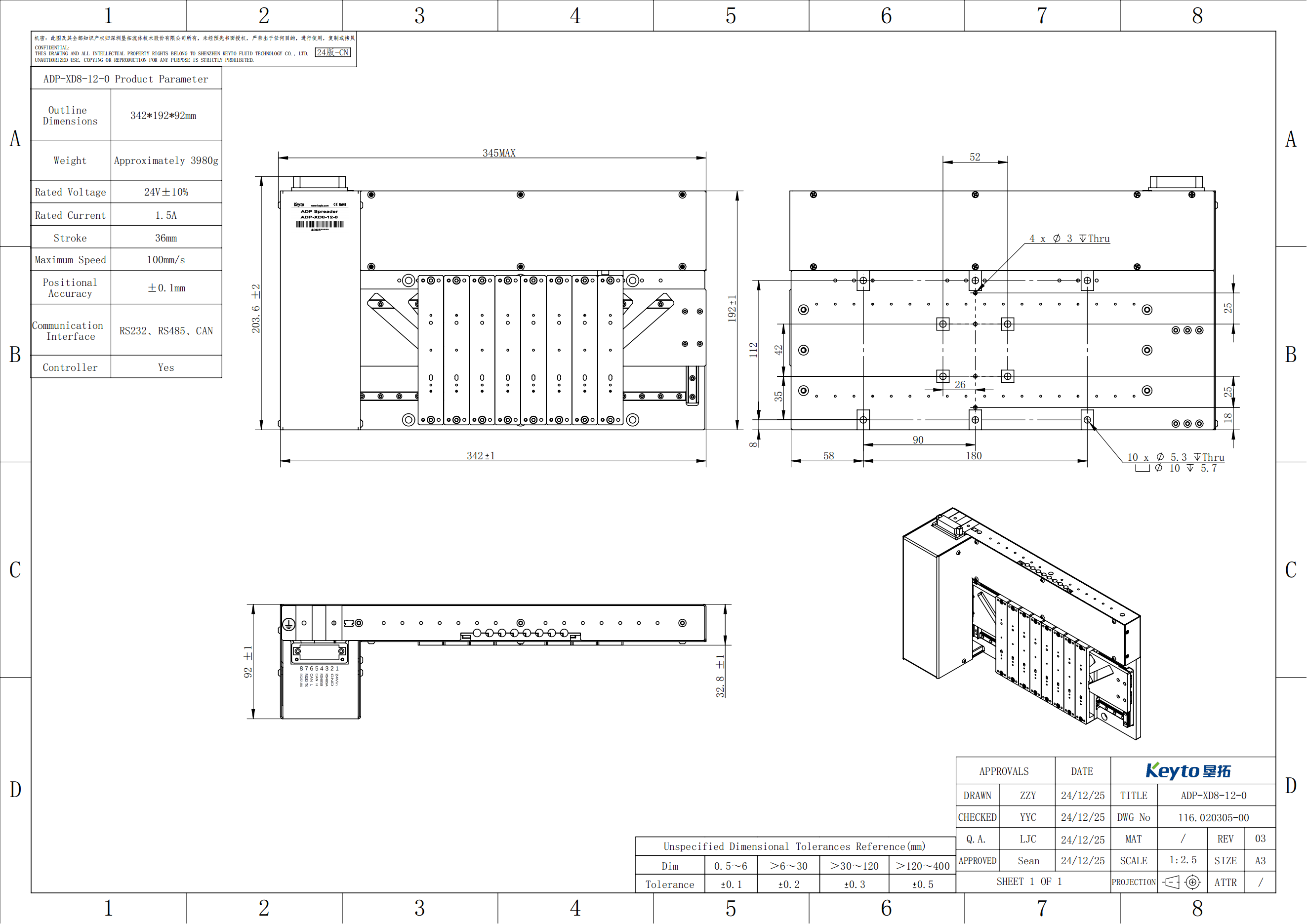

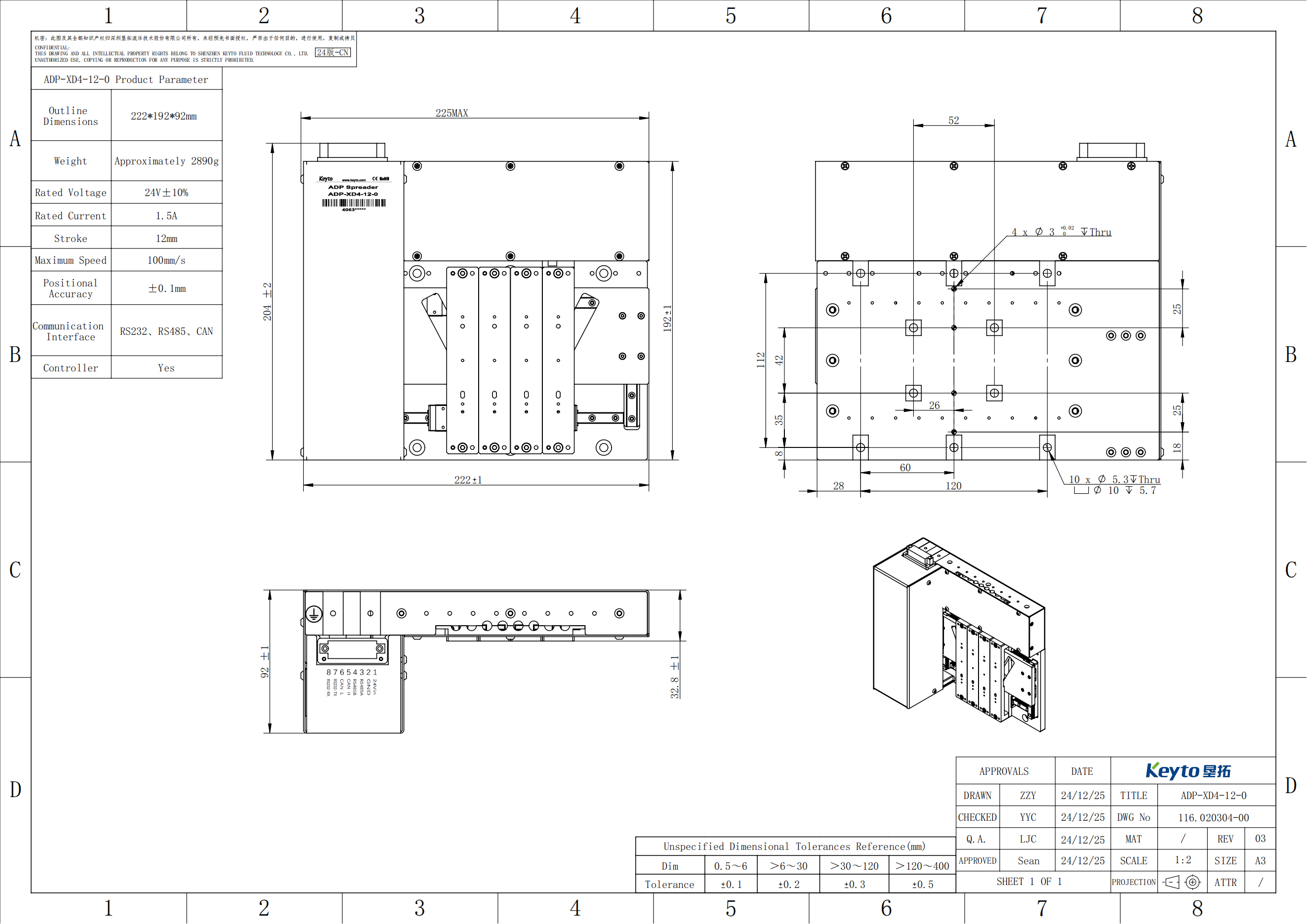

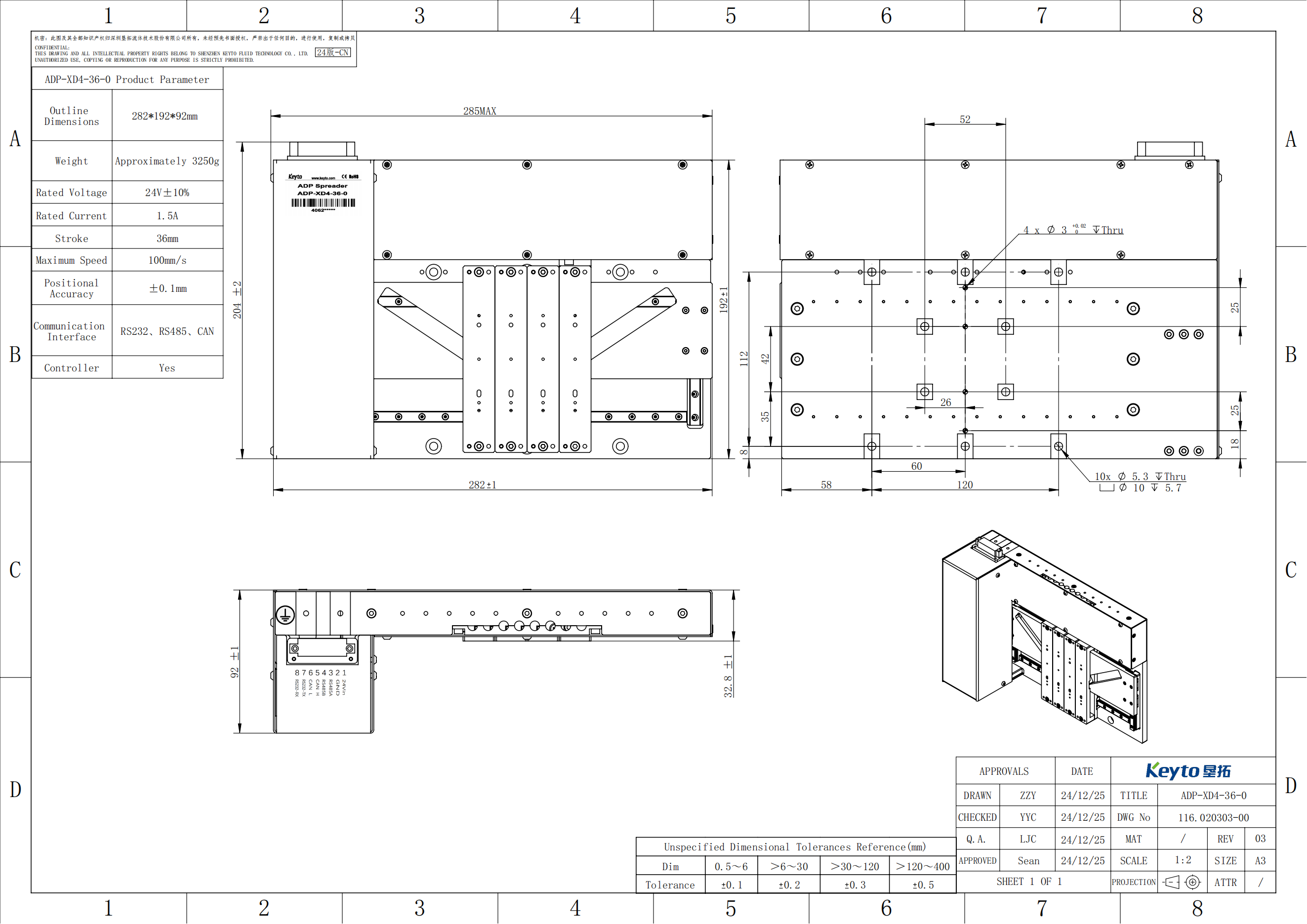

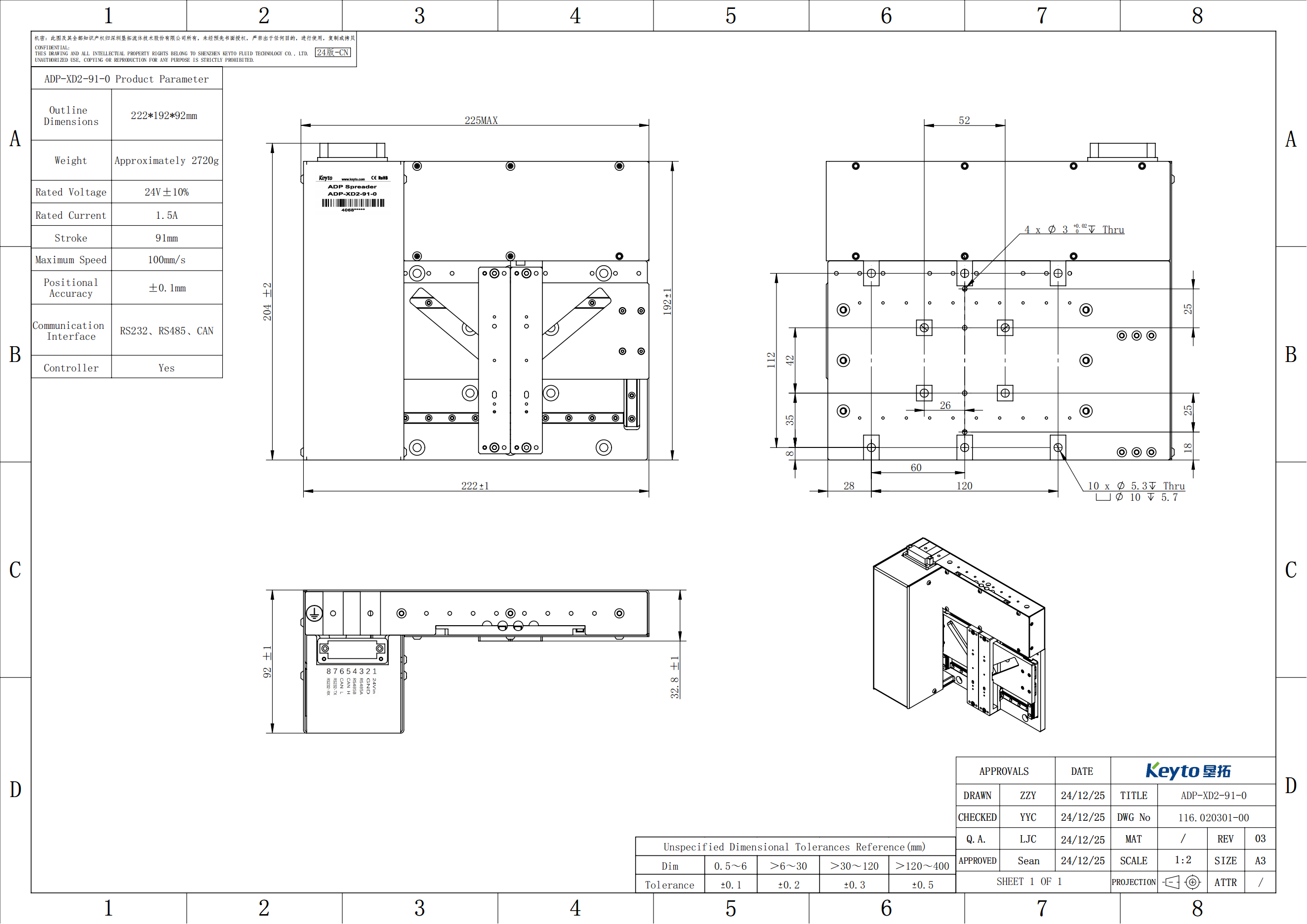

Specifications

Overview

Product	Movement Mechanism
Tip-to-Tip Spacing Accuracy (at 9 mm)	±0.1 mm
Accuracy Within Full Stroke Range	±0.2 mm
Number of Channels	2, 4, or 8 channels
Full Stroke Movement Time	< 5 seconds
Maximum Stroke Range	9–100 mm
Operating Noise	≤ 60 dB (A)
Communication Interface	RS485, RS232, CAN
Baud Rate	CAN (KT_CAN_DIC): 100K / 125K / 250K / 500K (default) / 1M Serial: 9600 / 38400 (default) / 115200
Operating Temperature	+15°C to +35°C
Weight	≤ 4000 g
Power Input	24V DC
Drive System	Stepper motor with lead screw
Service Life	≥ 1,000,000 cycles

Product Overview

The Movement Mechanism is designed to work with SADP products and Z-axis units to achieve uniform variable spacing functionality in the X-axis direction. This enables SADP tip-to-tip spacing to adapt to different spacing requirements for tip racks, sample tubes, and reagent kits. When combined with multiple Z-axis and SADP units, the system is collectively known as the SADP Flexible Multi-Channel Pipetting System, abbreviated as MSADP (Multi Superb Air Displacement Pipettor).

MSADP typically serves as the core module in liquid handling workstations. The Movement Mechanism control board functions as the MSADP master node, receiving unified commands from the host system and coordinating control of SADP units, Z-axis, and the movement mechanism. This design enables users to quickly and easily integrate the system into their equipment, significantly reducing development cycles.

Key Features

Multi-Channel Capability Combined with Keyto Z-axis and SADP units, supports up to 8-channel configuration with minimum 9mm tip-to-tip spacing for pipetting operations.

Integrated Control System Features built-in control board that provides spacing functionality while serving as the master node, offering unified external control interface for the complete pipetting system.

Precision Positioning Employs multiple positioning methods to ensure precise movement accuracy and reliable performance.

Versatile Communication Support Supports multiple communication protocols and provides DEMO programs compatible with various development platforms for seamless integration.
