SADP28 Air Displacement Pipettes

SADP28 Air Displacement Pipette

The SADP28 series pipette integrates a controller with RS232, RS485, and CAN communication for convenient control. Driven by a stepper motor, it supports precise aspiration and dispensing, automatic tip ejection, and offers dispensed volume from 5μL to 1000μL. With optical detection for tip presence and integrated automatic pressure-based liquid level and clot detection, it ensures reliable performance. Its chemically resistant nozzle components and durable design ensure a lifetime exceeding 1 million cycles without maintenance.

Key Parameters:

volume

Motor and Optocoupler Configuration

Function

Reference Model:

SADP28

SPEC

Online Browsing Download

WhatsApp Contact

Online Message

E-mail Comparison/Performance

SADP28 Air Displacement Pipette

Comparable Products

SADP13 Air Displacement Pipette

SADP16 Air Displacement Pipette

SADP18P Air Displacement Pipette

SADP18 Air Displacement Pipette

SADP20 Air Displacement Pipette

Comparison/Performance

Back

Drawings

Specifications

Overview

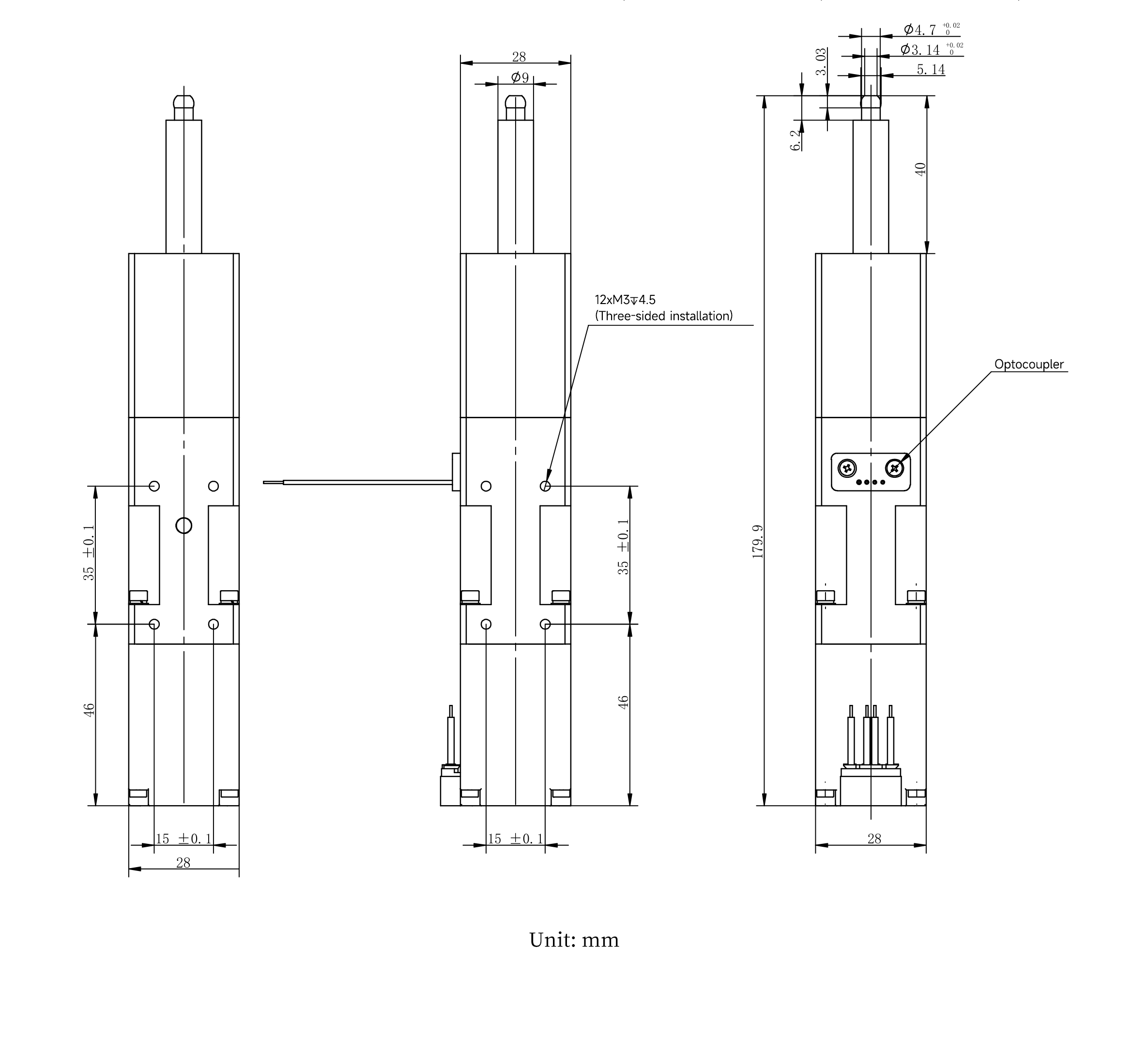

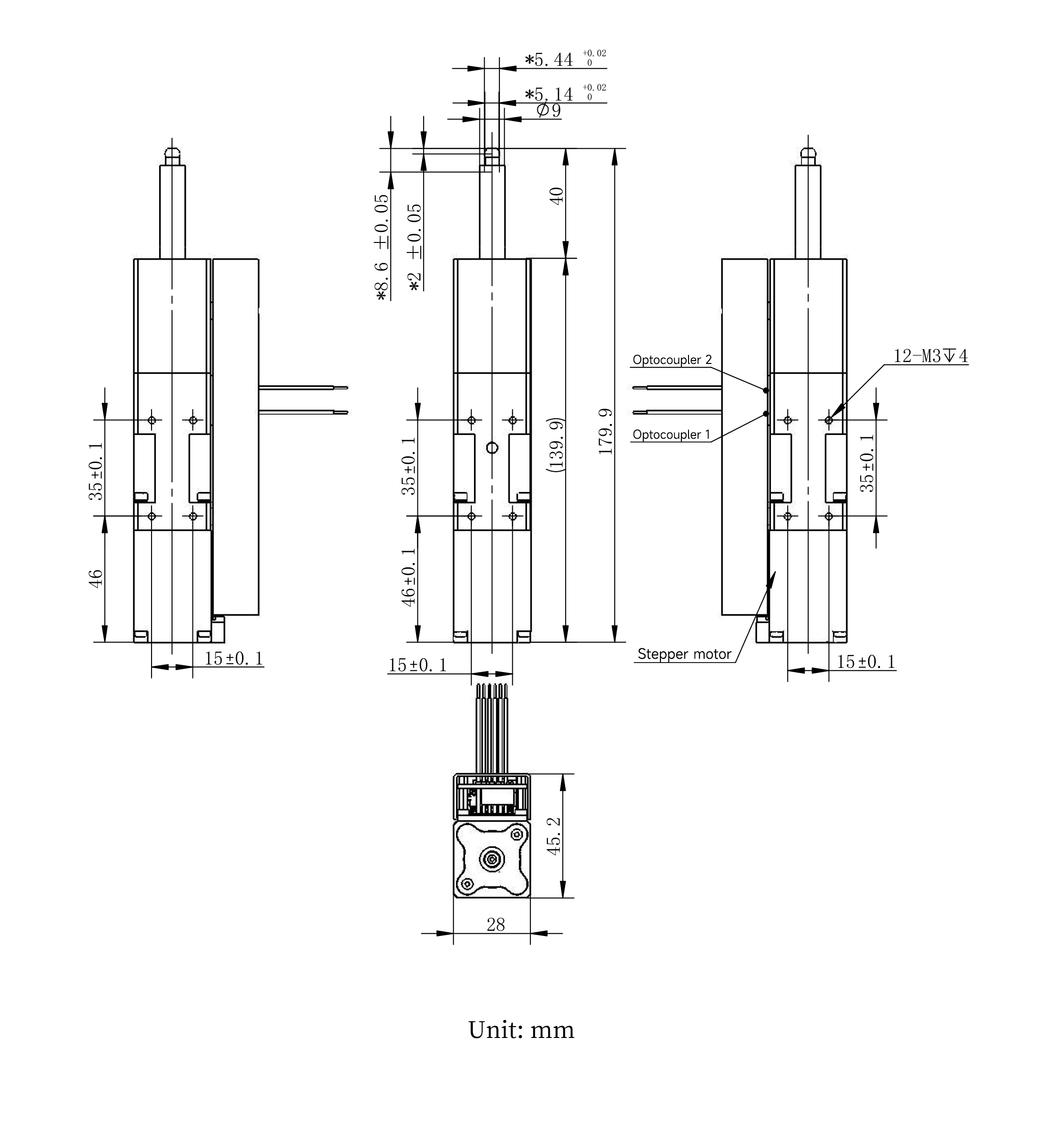

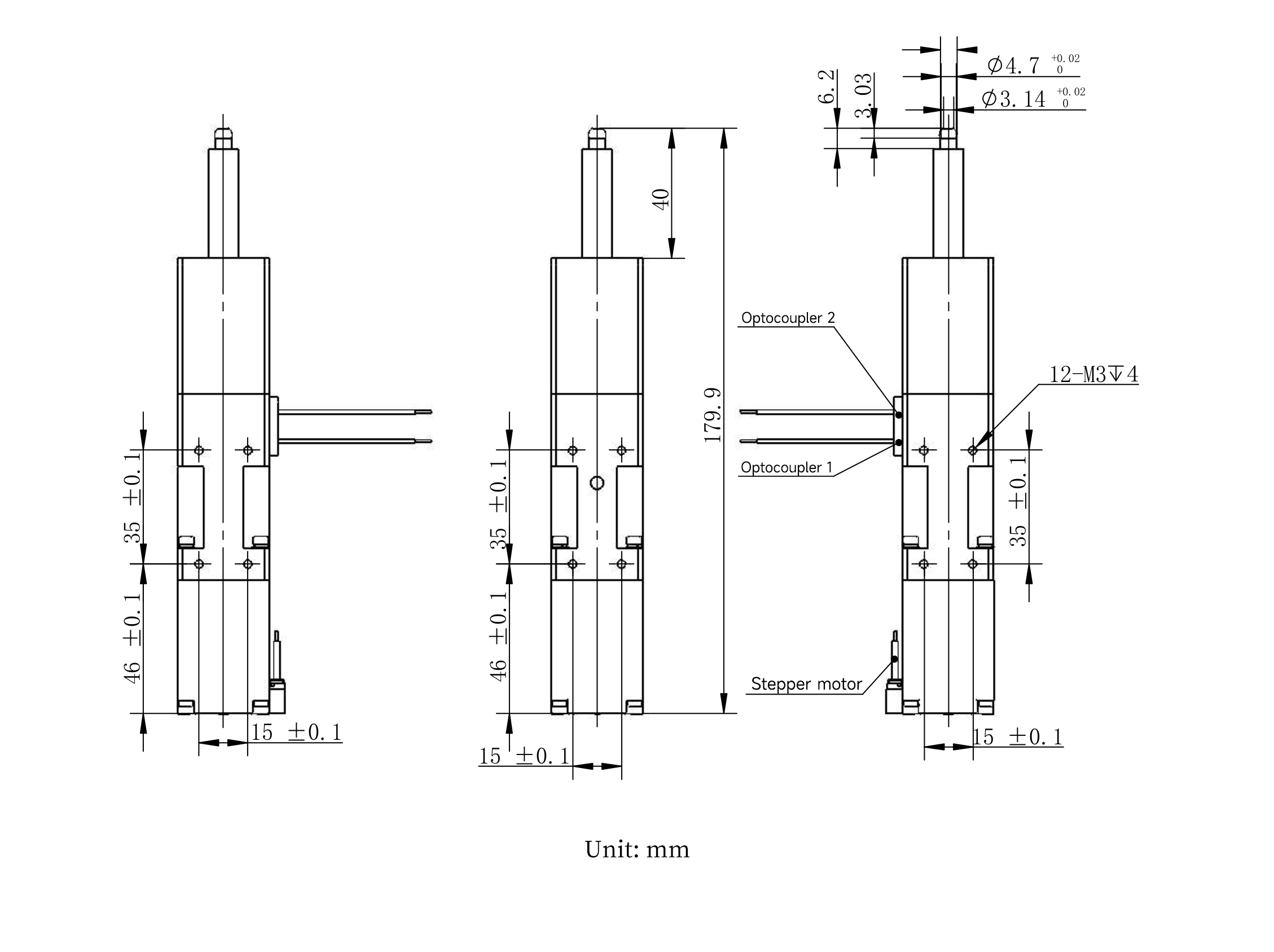

2D View

3D View

Option 1

Option 2

Option 3

Model	SADP28
Cable	Flexible towline cable
Structure	Piston
Liquid Level Detection	pLLD
Function	Option A : Automatic pick-up, eject the tips(require Z-axis) Option B : 1.Automatic pick-up, eject the tips(require Keyto Z-axis) 2.Tip presence sensor Option C: 1.Automatic pick-up, eject the tips(require Z-axis) 2.Tip presence sensor 3.Liquid level detection 4.Liquid level following(require Keyto Z-axis) 5.Clot detection 6.Aspiration of air detection
Pipetting Range	5ul-1ml
Fastest Aspirete and Dispense Speed	100ul: 200ul/s 250ul: 500ul/s 500ul: 1000ul/s 1000ul: 2000ul/s
Fastest Liquid Level Detection Speed	30ms
CV at Minimum Dispense Volume @50ul tip	5ul, 3%
CV%, Dispense 5 ul @50ul tip	4%
CV%, Dispense 10 ul @200ul tip	4%
CV%, Aliquot Dispense 20 ul @1000 ul tip	3%
Tip Volume	10μL/50μL/200μL/1000μL
Minimum Tip-to-tip Spacing	9mm/18mm
Communication	RS-232, RS-485, CAN, BUS
Motor	Stepper Motor
Z-axis compatible	Z180
Movement Mechanism Compatible	N
Aspiration Monitor	Y(optional)
Lifetime	1 Million Cycles
Power	24VDC
Max Pipetting Units	4 units
Dimensions	1403328 mm(Option A/B) 1402845.5 mm(Option C)
Weight	≤500g
