SADP18 Air Displacement Pipettes

SADP18 Air Displacement Pipette

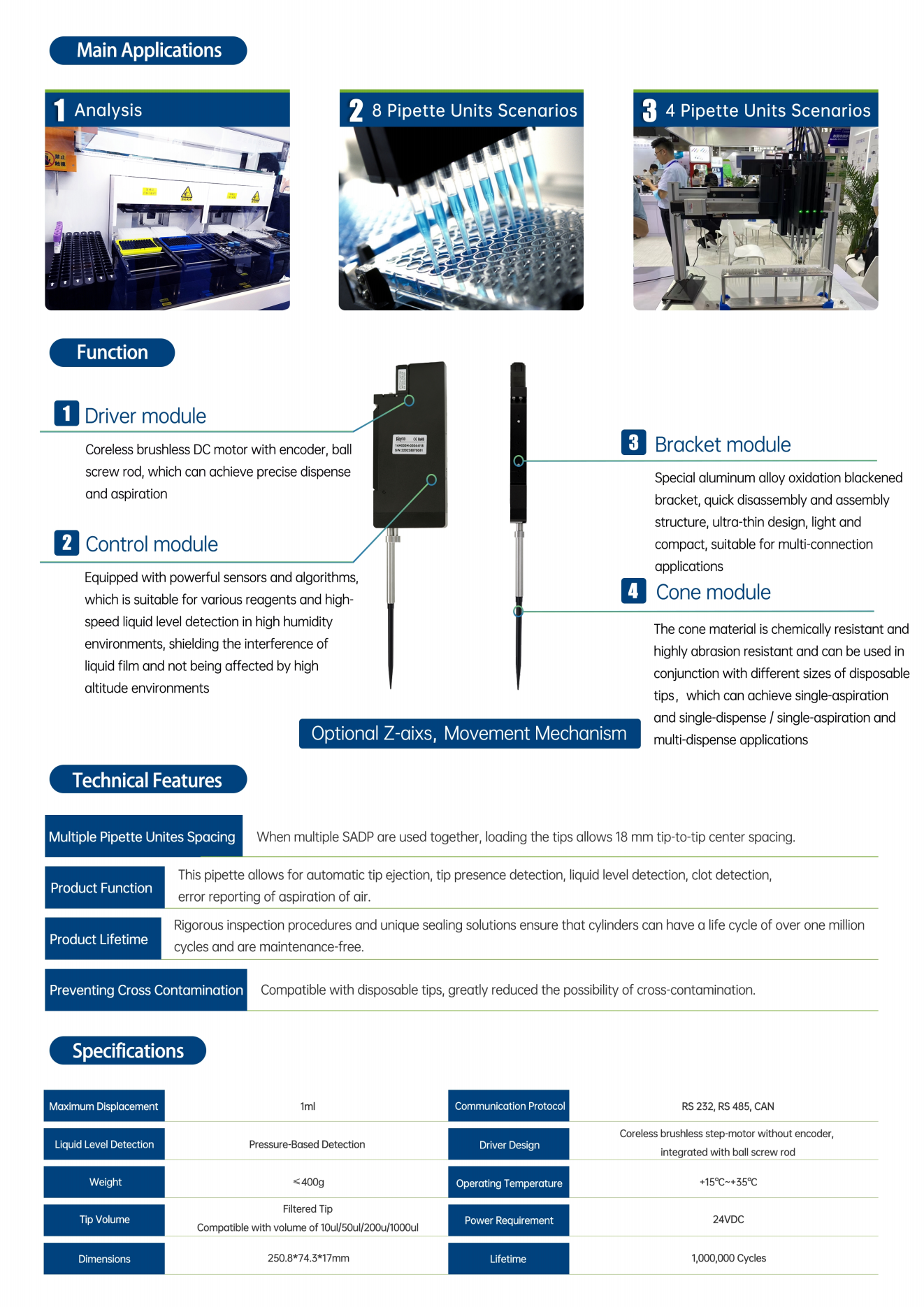

The SADP18 (Superb Air Displacement Pipette 18) is a high-performance pipetting module designed for 5μL to 1000μL pipetting with disposable tips, minimizing cross-contamination risks. It supports fast, reliable aspiration and dispensing, ensuring compatibility with various tip sizes. Equipped with a robust mechanical adaptor and versatile communication interfaces, it integrates seamlessly into sensitive pipetting platforms and inspection equipment. SADP18 delivers precise, efficient performance for a wide range of applications.

Key Parameters:

Default configuration

Reference Model:

SADP18

SPEC

Online Browsing Download

WhatsApp Contact

Online Message

E-mail Comparison/Performance

SADP18 Air Displacement Pipette

Comparable Products

SADP13 Air Displacement Pipette

SADP16 Air Displacement Pipette

SADP18P Air Displacement Pipette

SADP20 Air Displacement Pipette

SADP28 Air Displacement Pipette

Comparison/Performance

Back

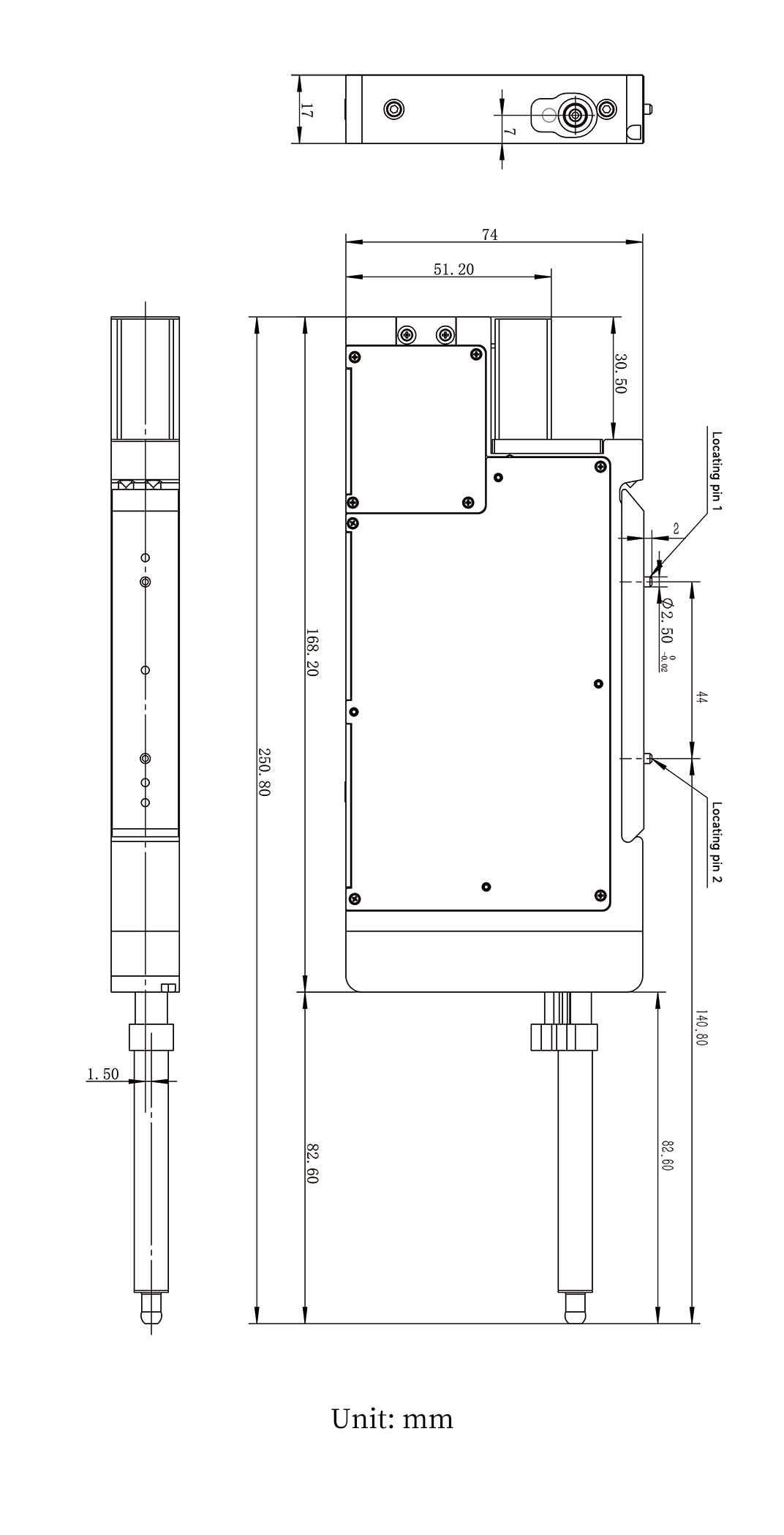

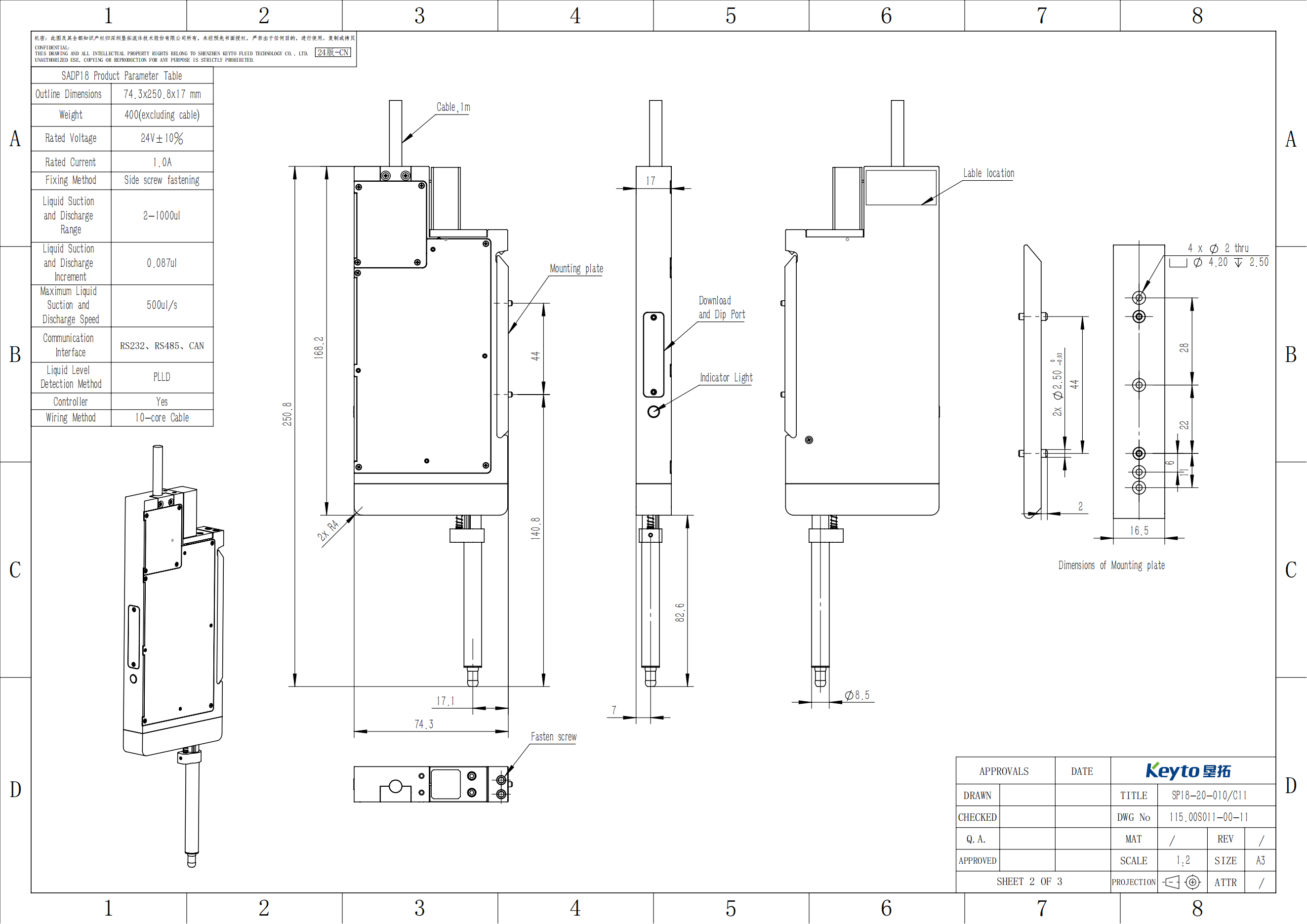

Drawings

Specifications

Overview

2D View

3D View

SADP18

Model	SADP18
Cable	Flexible towline cable
Structure	Plunger
Liquid Level Detection	pLLD
Function	1.Automatic pick-up, eject the tips(require Z-axis) 2.Tip presence sensor 3.Liquid level detection 4.Liquid level following(require Keyto Z-axis) 5.Clot detection 6.Anti-droplet control 7.Bubbles/foam detection 8.Aspiration of air detection
Pipetting Range	5ul-1ml
Fastest Aspirete and Dispense Speed	500ul/s
Fastest Liquid Level Detection Speed	15ms
CV at Minimum Dispense Volume @50ul tip	5ul, 5%
CV%, Dispense 5 ul @50ul tip	3%
CV%, Dispense 10 ul @200ul tip	3%
CV%, Aliquot Dispense 20 ul @1000 ul tip	3%
Tip Volume	10μL/50μL/200μL/1000μL
Minimum Tip-to-tip Spacing	18mm
Communication	RS-232, RS-485, CAN
Motor	Stepper Motor
Z-axis Compatible	Z180
Movement Mechanism Compatible	Y
Aspiration Monitor	Y
Lifetime	1 Million Cycles
Power	24VDC
Max Pipetting Units	4 units
Dimensions	234.477.817 mm
Weight	≤400g
