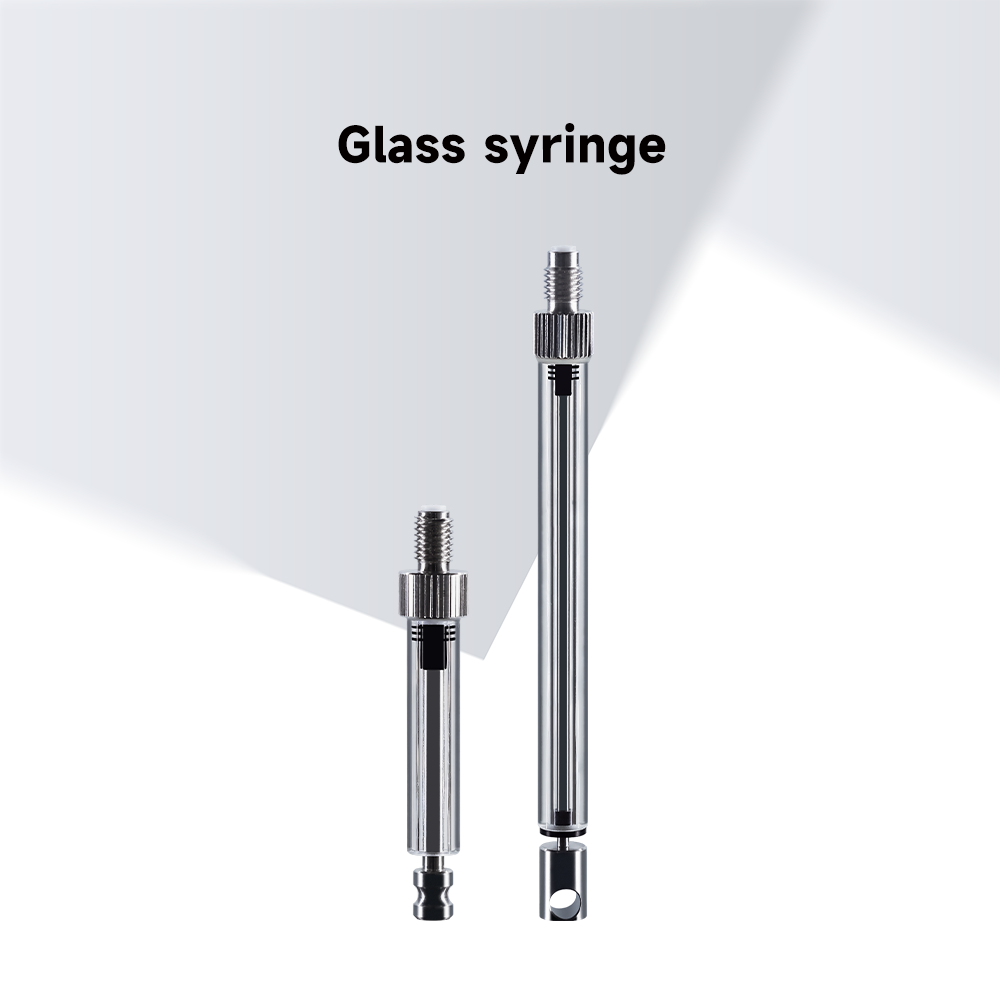

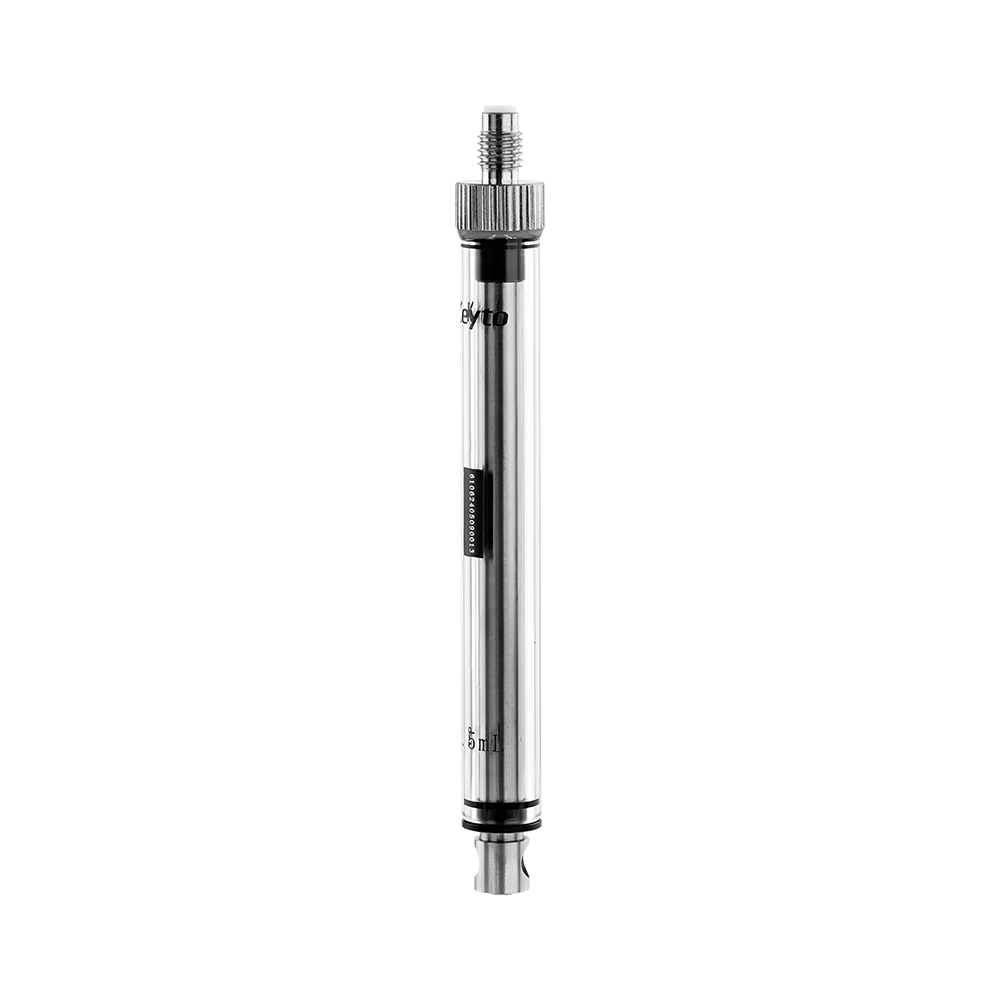

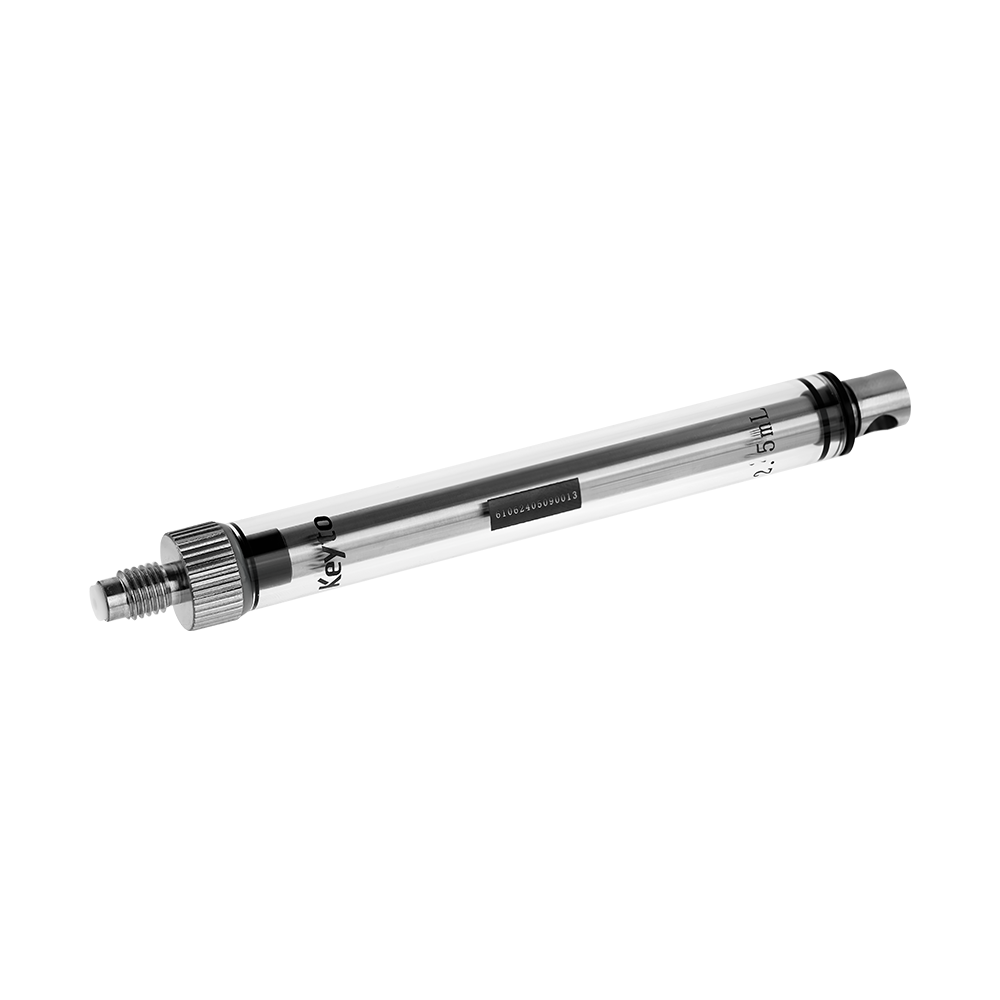

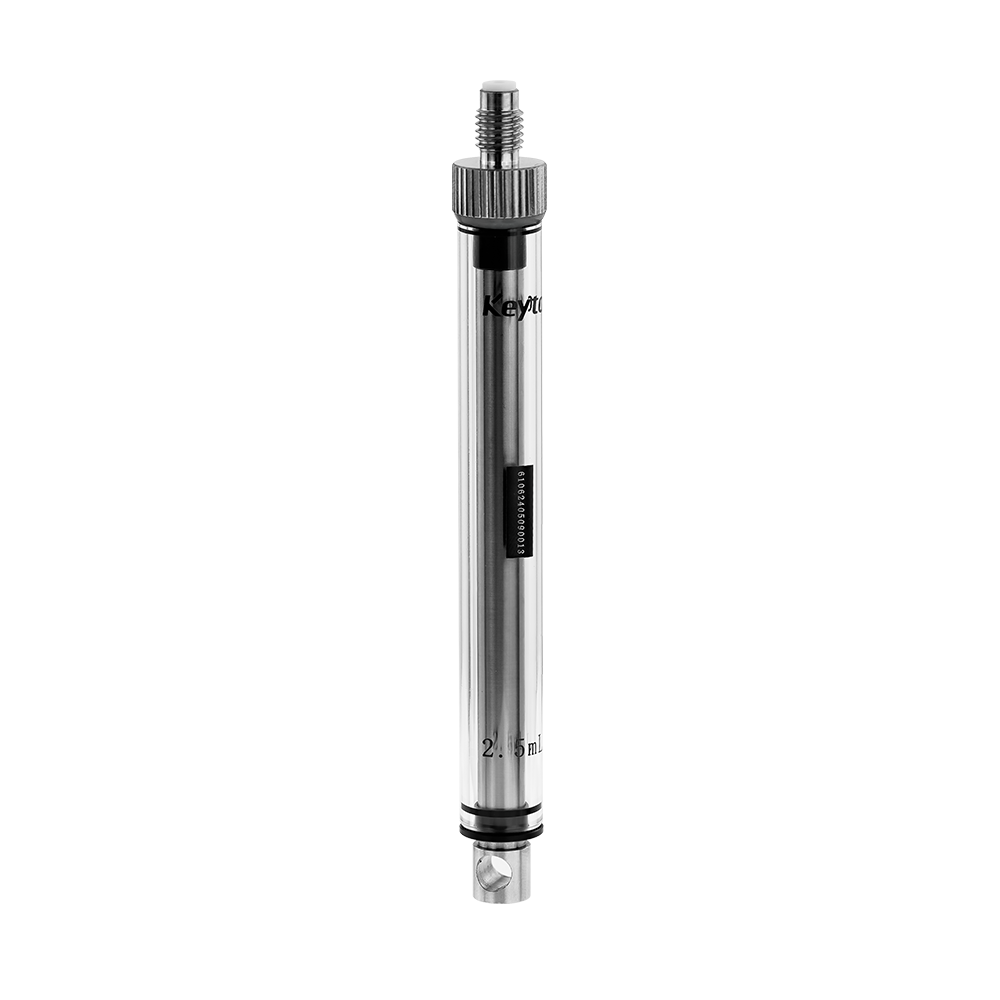

Glass syringe
Glass syringe
Key Parameters:
Volume
Stroke
Plunger Material
Reference Model:
2K
WhatsApp Contact
Online Message
Comparison/Performance
Glass syringe
Comparable Products
Comparison/Performance
Back
Drawings
Specifications
Overview
2D View
3D View

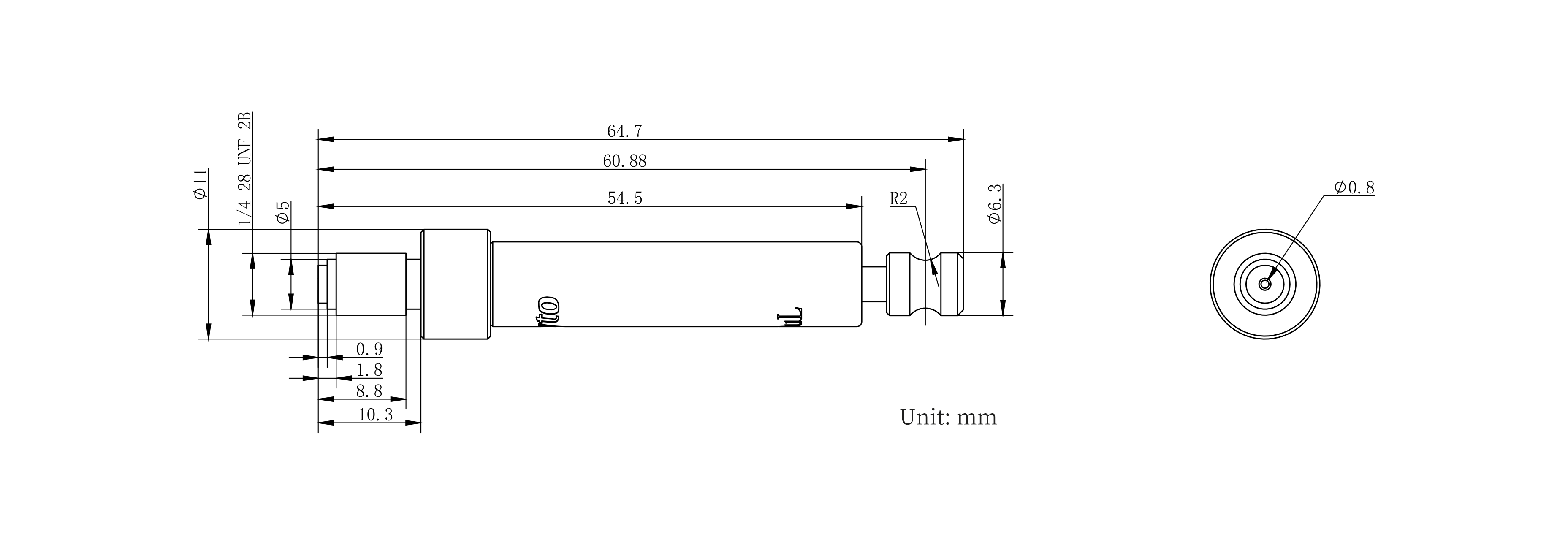

Type 30mm stroke glass syringe
Syringe Volume
 100μL 250μL 500μL 1mL 2.5mL 5mL
Model 2K01-30 2K02-30 2K05-30 2K10-30 2K25-30 2K50-30
Stroke (mm)
 30
Glass Material
 borosilicate
Service life cycle
 PTFE Piston: 400,000 full stroke    UHMWPE Piston: 800,000 full stroke
Dispense precision
 2%
CV 1.50%
Pressure resistance
Pressure drop ≤ 0.6kPa in 20s under 0.6MPa air pressure

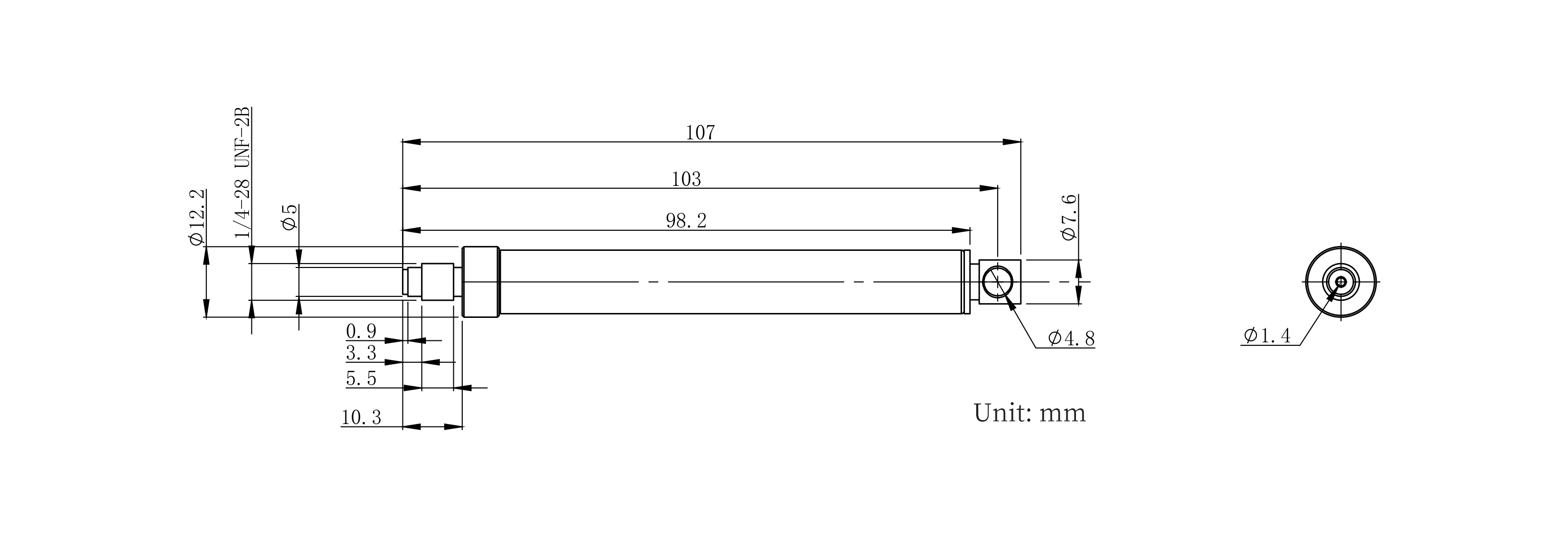

Type 60mm stroke glass syringe
Syringe Volume 100μL 250μL 500μL 1mL 2.5mL 5mL 10mL
Model 2K01-60 2K02-60 2K05-60 2K10-60 2K25-60 2K50-60 2K1A-60
Stroke (mm) 60
Glass Material borosilicate
Service life cycle PTFE Piston: 400,000 full stroke    UHMWPE Piston: 800,000 full stroke
Dispense precision 2%
CV 1.50%
Pressure resistance Pressure drop ≤ 0.6kPa in 20s under 0.6MPa air pressure
