Stroke:
60mm Stroke
Channel Configurations:
Valve Type:
Back

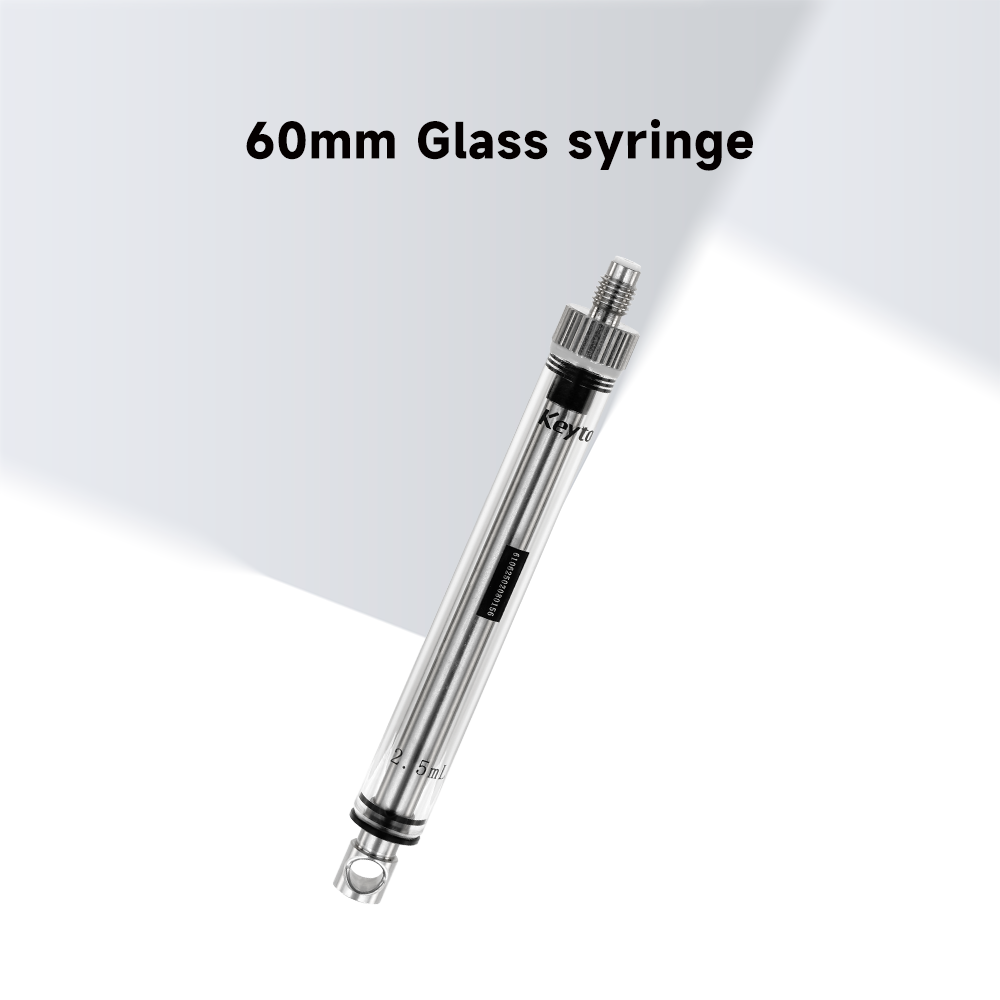

60mm Glass syringe
60mm Glass syringe
Key Parameters:
Volume
Plunger Material
Reference Model:
2K
WhatsApp Contact
Online Message
Comparison/Performance
60mm Glass syringe
Comparable Products
Comparison/Performance
Back
Drawings
Specifications
Overview

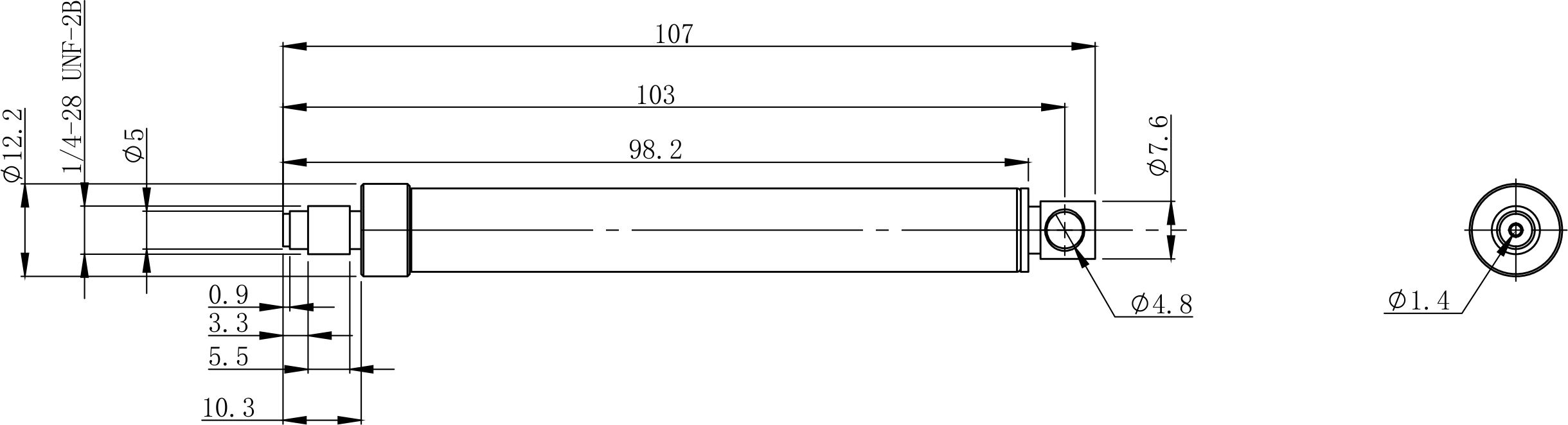

2D View
3D View
Type 60mm stroke glass syringe
Syringe Volume 100μL 250μL 500μL 1mL 2.5mL 5mL 10mL
Model 2K01-60 2K02-60 2K05-60 2K10-60 2K25-60 2K50-60 2K1A-60
Stroke (mm) 60
Glass Material borosilicate
Service life cycle PTFE piston: 400,000 full strokes
UHMWPE piston: 800,000 full strokes
Dispense precision 2%
CV 1.50%
Pressure resistance Pressure drop ≤ 0.6kPa in 20s under 0.6MPa air pressure
