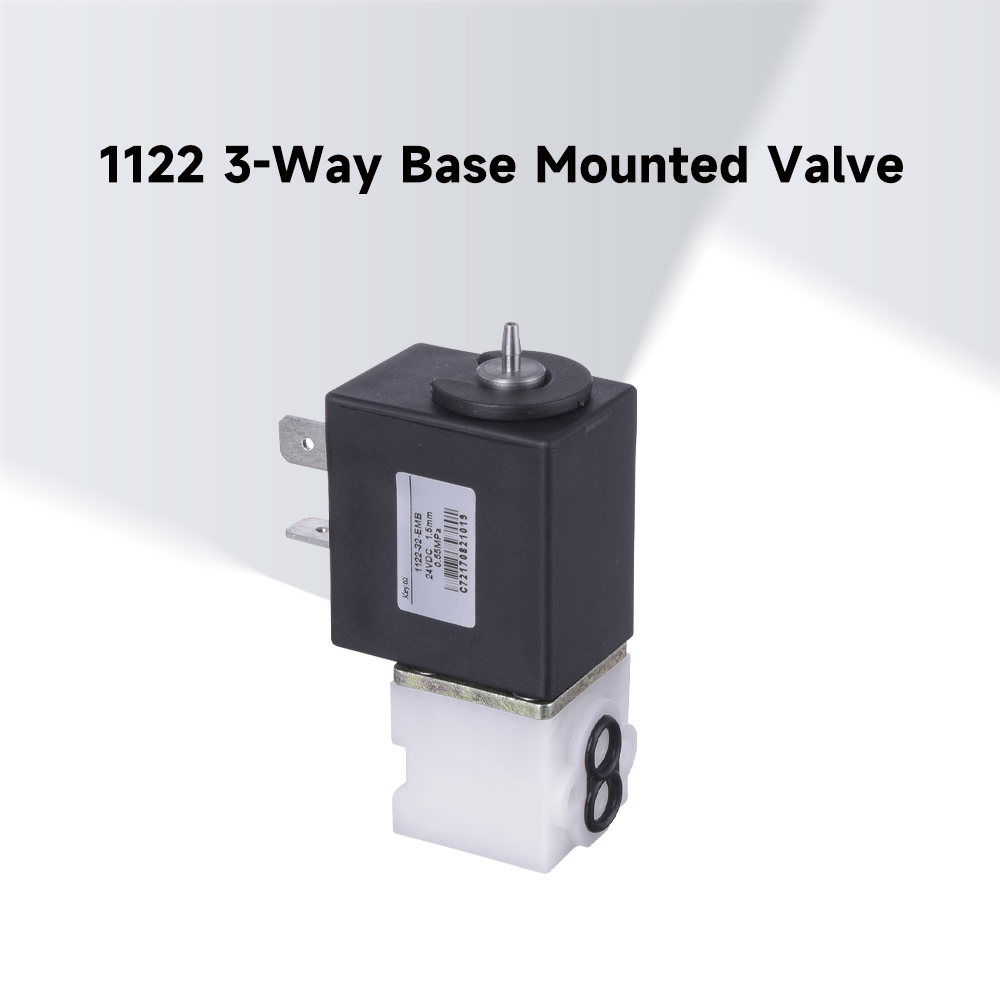

1122 3-Way Base Mounted Valve
1122 3-Way Base Mounted Valve
The 1122 plunger valve is designed for use in high-speed applications involving air, ink, and oil-based solvents. Its compact structure and 1.5mm orifice allow for precise, high-accuracy fluid control. The valve is highly pressure-resistant and offers rapid response with a flow capacity of 3g/s at 50KPa. It is also compatible with cleaning agents such as ink and various reagents.
Key Parameters:
Voltage
Wetted Materials
Reference Model:
1122-3
WhatsApp Contact
Online Message
Model Comparison
1122 3-Way Base Mounted Valve
Comparable Products
1122 2-Way Base Mounted Valve
Model Comparison
Back
Overview
Parameters

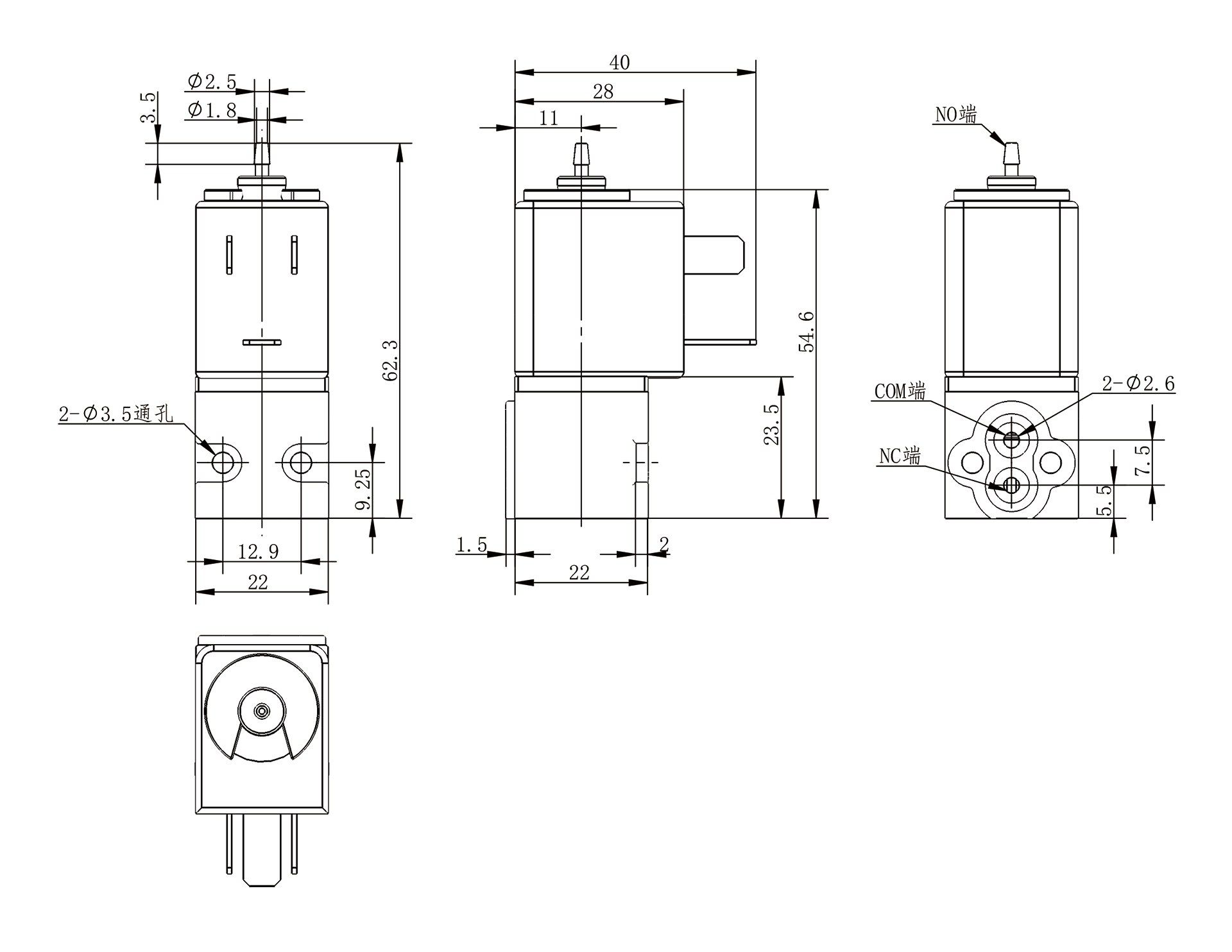

2D View
3D View

Valve Type

1122-3 Three-Way Base Mounted Valve

Valve Structure

Direct-acting Plunger Valve

Valve Body Material

POM

Diaphragm Material

EPDM / FFKM

Dimensions

57.8 mm × 29.4 mm × 22 mm

Number of Ports

3

Voltage

24V

Orifice Diameter

1.5 mm

Flow Rate

3 g/s @ 50 kPa
Demo video
Product video
Factory video
