Syringe Pump Metering Pump Precision Piston Pump Valve Intergrated Pump Syringe Component
Stroke:
30mm Stroke
Channel Configurations:
Valve Type:
Back

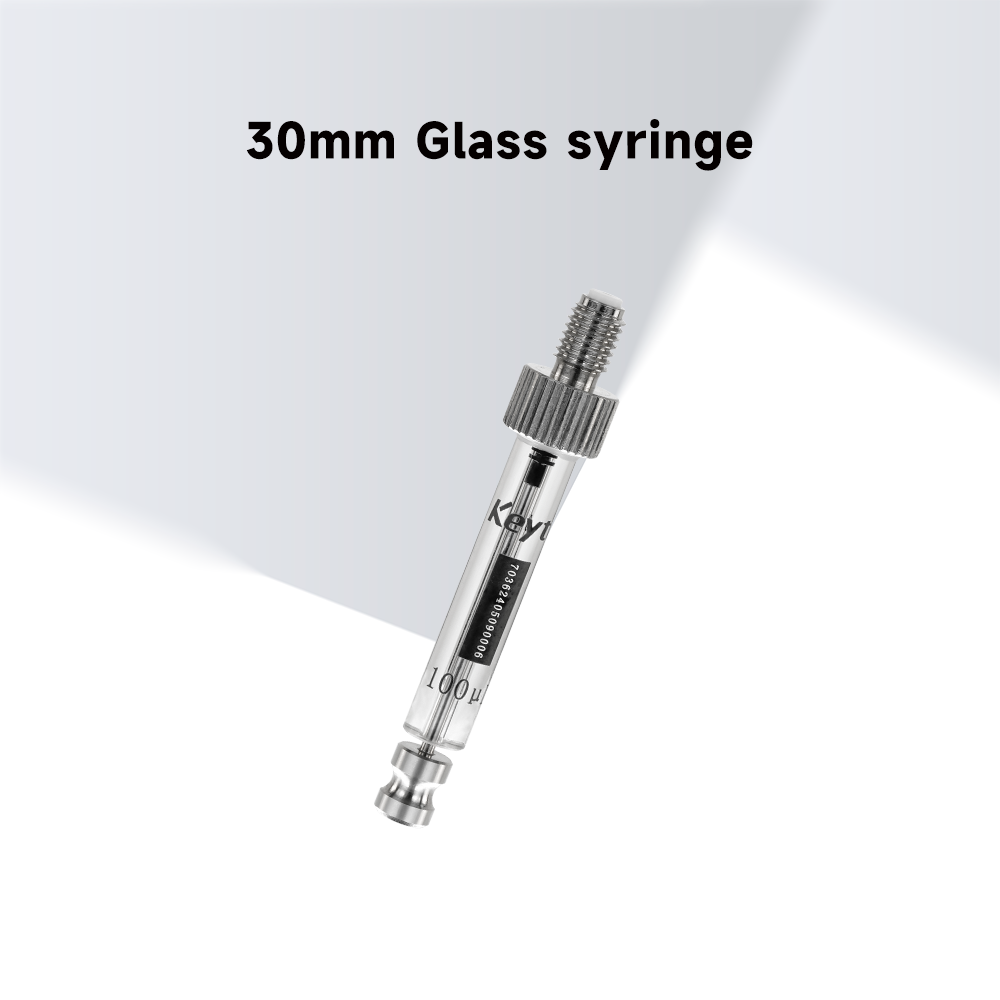

30mm Glass syringe
30mm Glass syringe
Key Parameters:
Volume
Plunger Material
Reference Model:
2K
WhatsApp Contact
Online Message
Comparison/Performance
30mm Glass syringe
Comparable Products
Comparison/Performance
Back

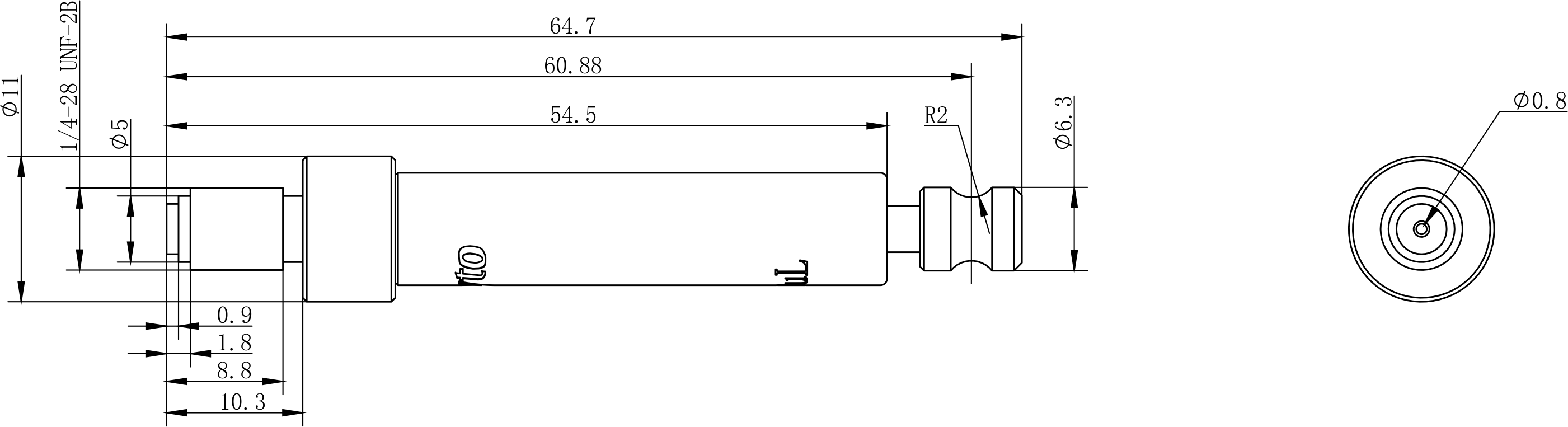

Drawings
Specifications
Overview
2D View
3D View
Type 30mm stroke glass syringe
Syringe Volume
 100μL 250μL 500μL 1mL 2.5mL 5mL
Model 2K01-30 2K02-30 2K05-30 2K10-30 2K25-30 2K50-30
Stroke (mm)
 30
Glass Material
 borosilicate
Service life cycle
 PTFE piston: 400,000 full strokes;
UHMWPE piston: 800,000 full strokes
Dispense precision
 2%
CV 1.50%
Pressure resistance
Pressure drop ≤ 0.6kPa in 20s under 0.6MPa air pressure
Demo video
Product video
Factory video
Keyto Machining Factory
Keyto Quality Control （1）
