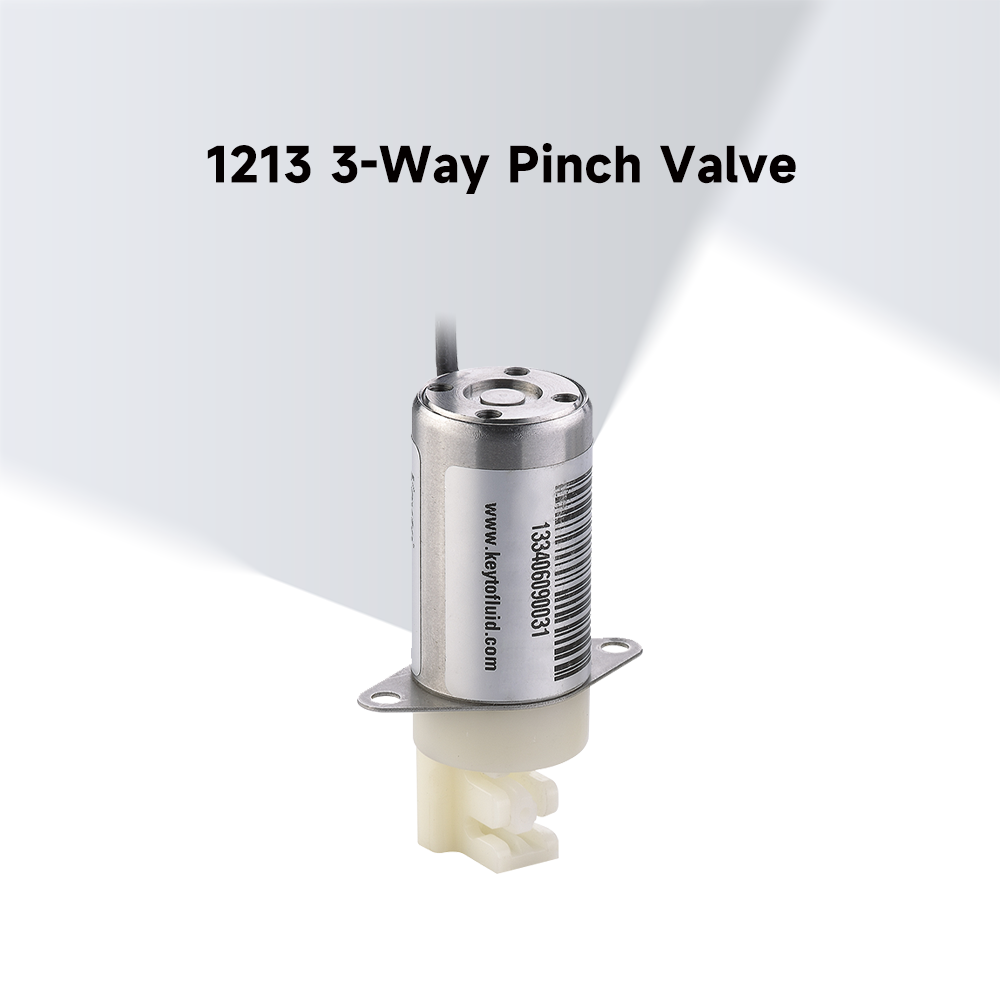

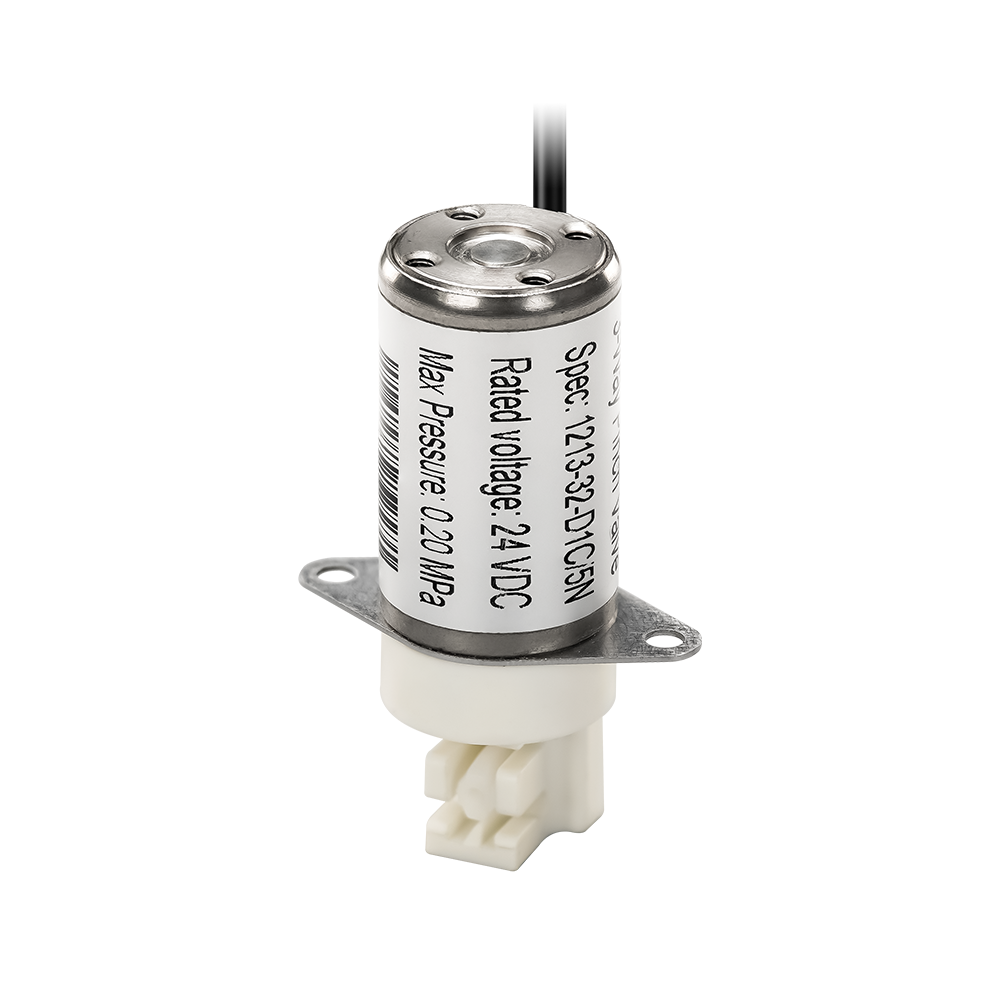

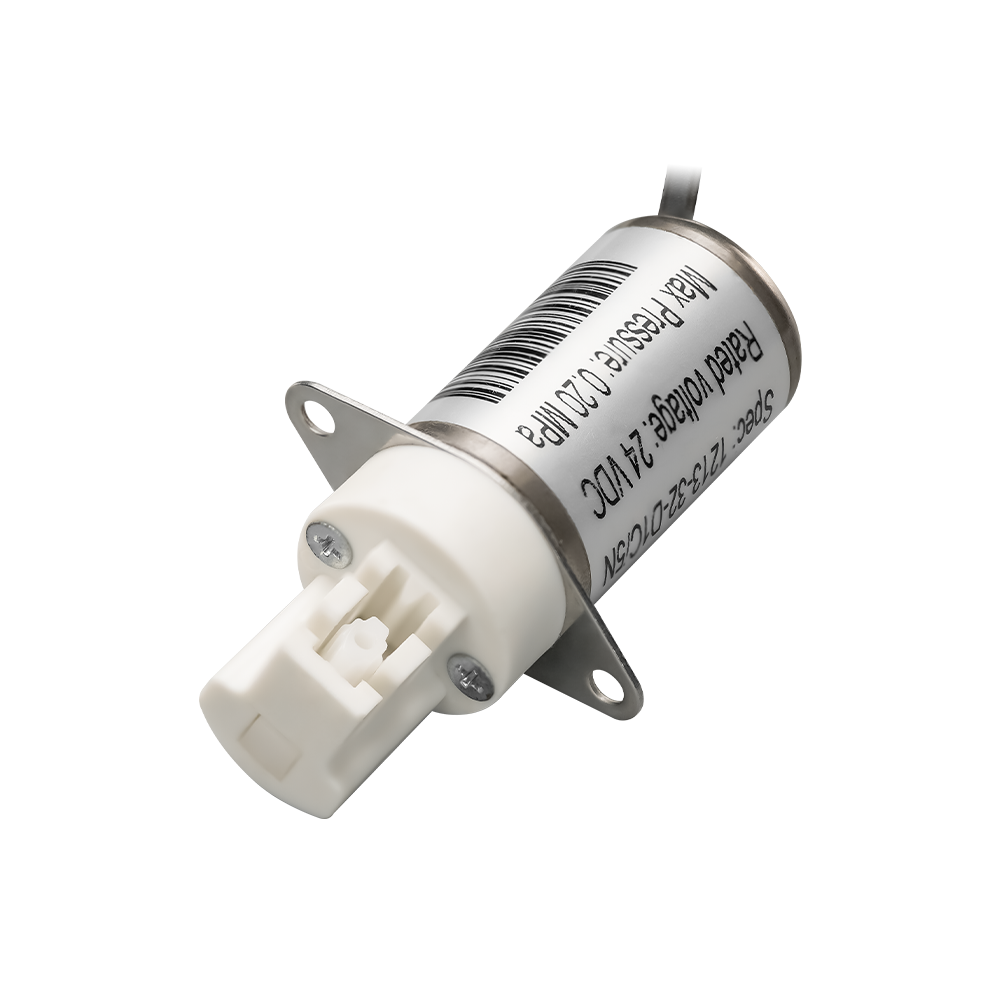

1213 3-Way Pinch Valve
1213 3-Way Pinch Valve
The 1213 series solenoid valve is a dual-channel pinch valve offering high performance, low cost, and maintenance-free operation. With its life span over 2 million cycles, it ensures reliable control of flow paths for various tube types. Its easy-to-clean tubing design effectively handles samples with impurities and particulates, preventing cross-contamination. This series offers multiple model options to meet diverse application needs.
Key Parameters:
Voltage
Fixing method
Reference Model:
1213-3
WhatsApp Contact
Online Message
Model Comparison
1213 3-Way Pinch Valve
Comparable Products
1224 2-way N.C. Pinch Valve
1224 2-way N.O. Pinch Valve
1269 2-way Pinch Valve
1212 3-way Pinch Valve
1269 3-way Pinch Valve
Model Comparison
Back
Overview
Parameters

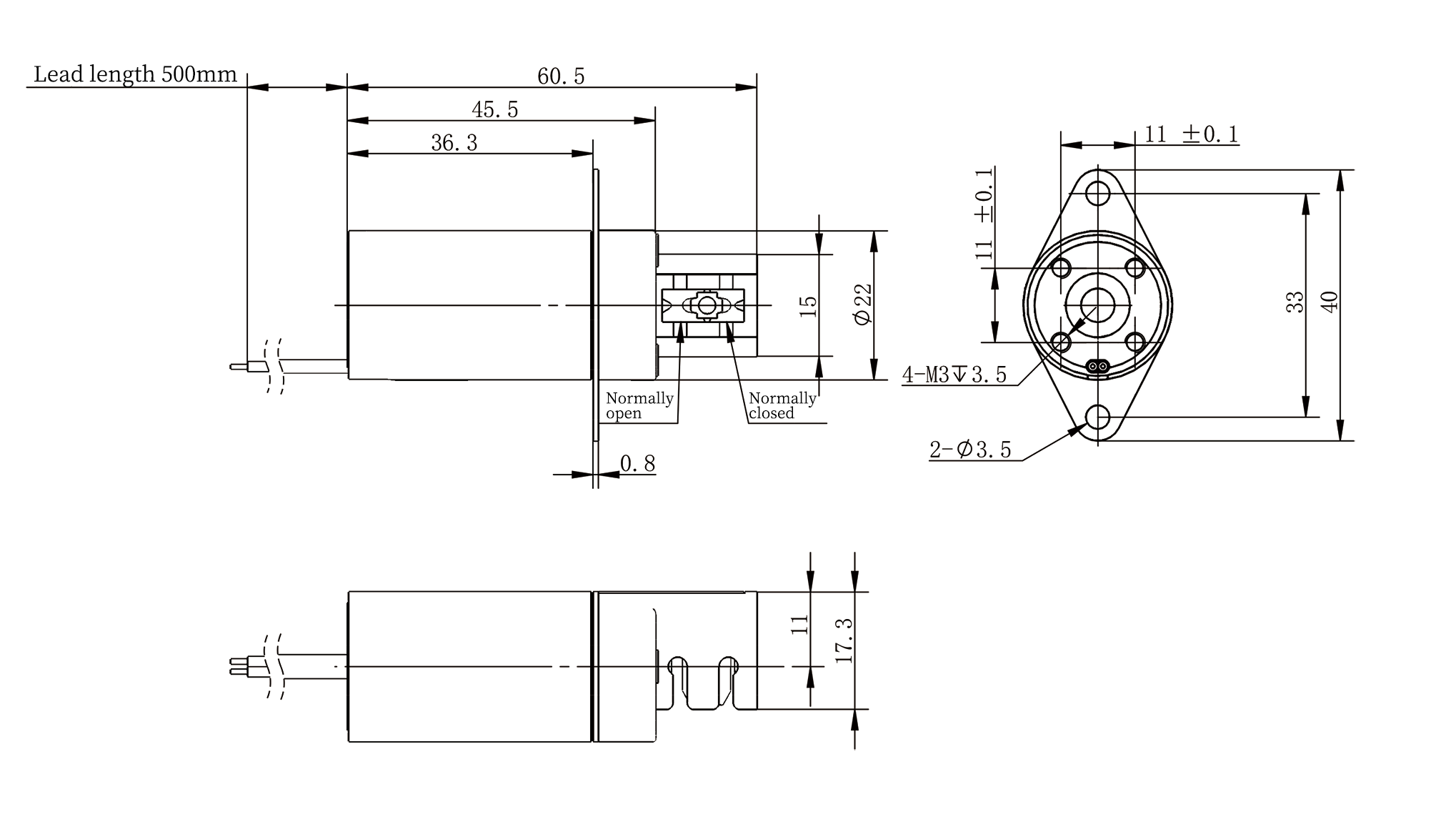

2D View
3D View

Valve Type

3-way pinch valve

Orifice Diameter

1.5 mm

Tubing Specification

1.5 mm × 3 mm

Recommended Tubing Hardness

Shore Hardness: 60

Pressure Resistance

-75 kPa ~ 200 kPa

Power Consumption

3.4 W / 3.7 W

Dimensions

Φ22 mm × 60.7 mm (B- and D-type mounting)

Remarks

For 2-way pinch valve applications, clamp a short piece of tubing on the other side to assist actuation or improve pressure resistance.

Note

For reference only. The parameters above have been simplified. Please contact our sales team for detailed specifications.
