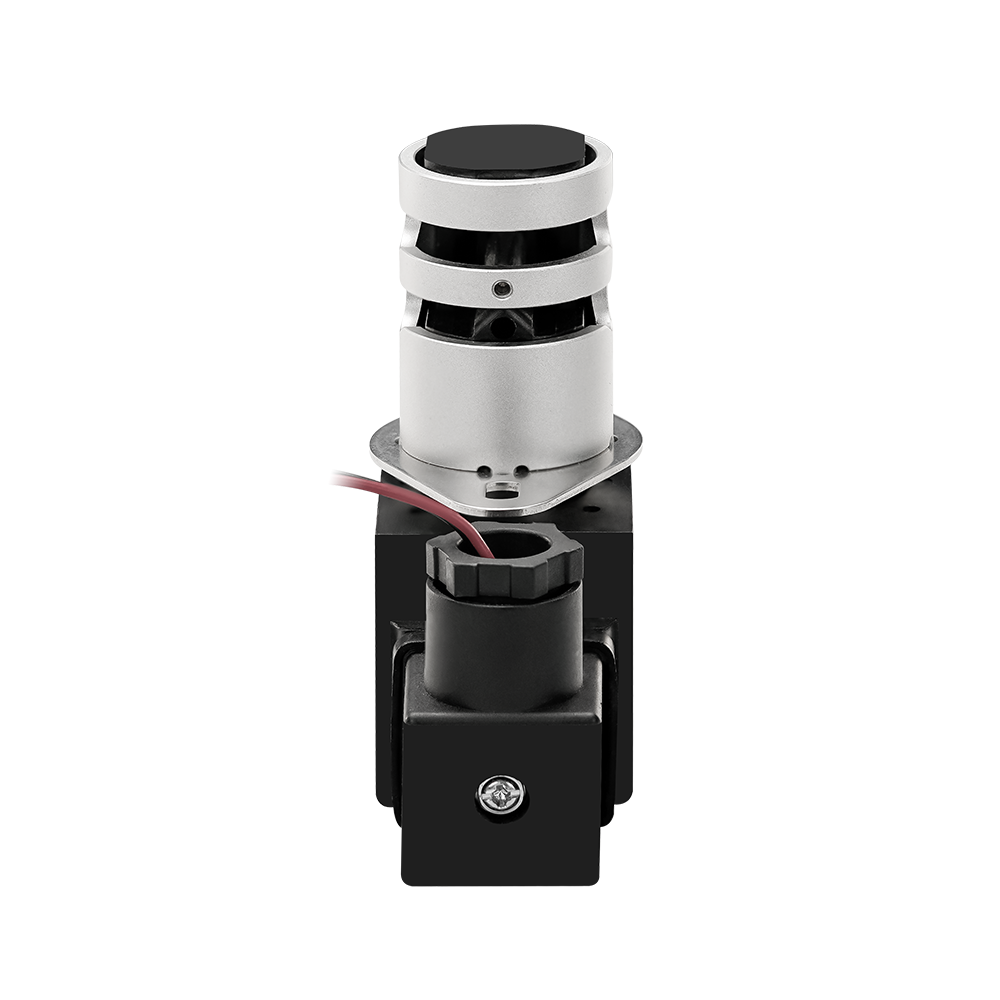

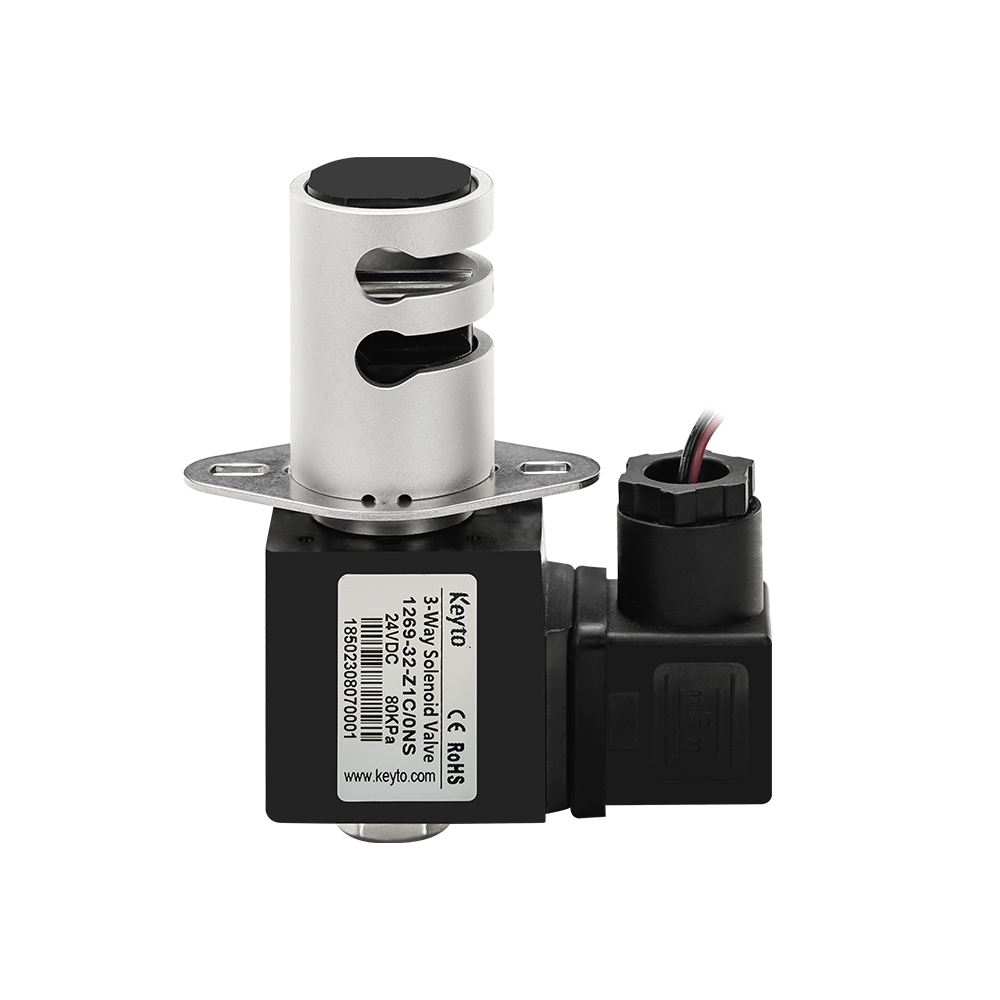

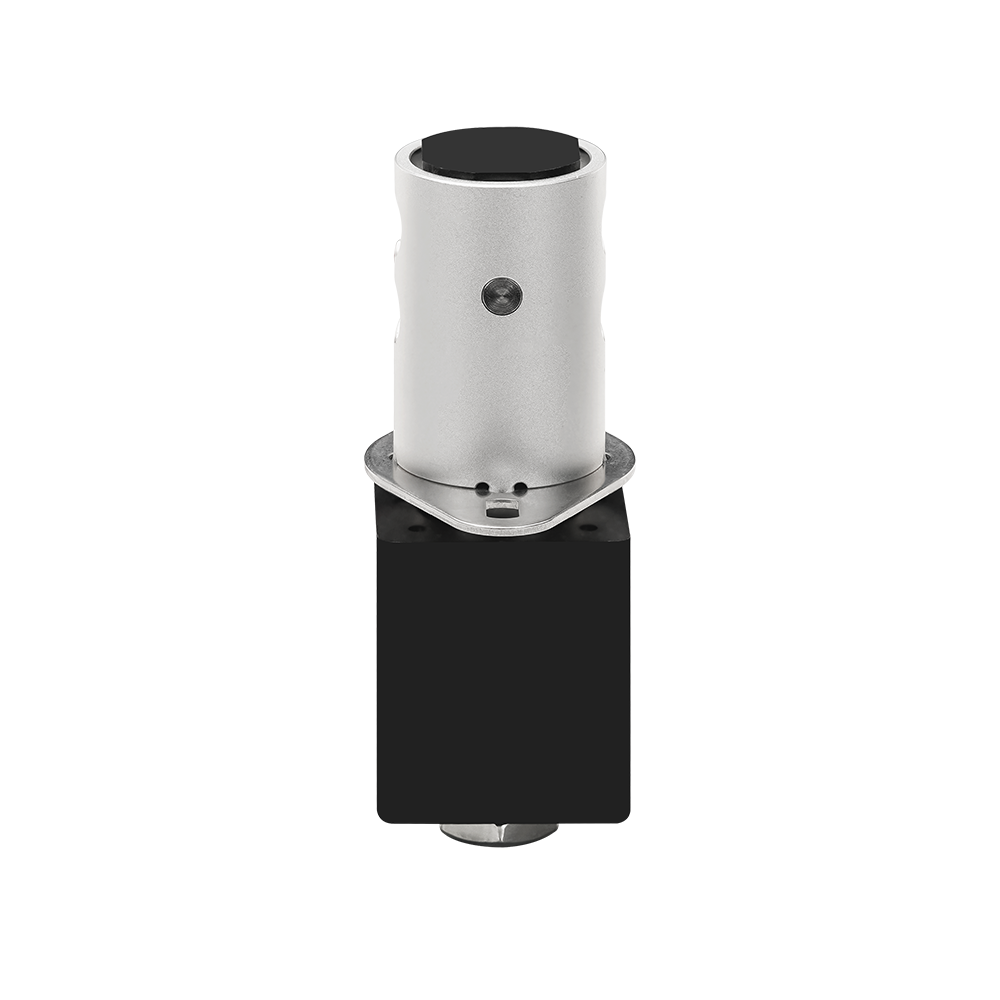

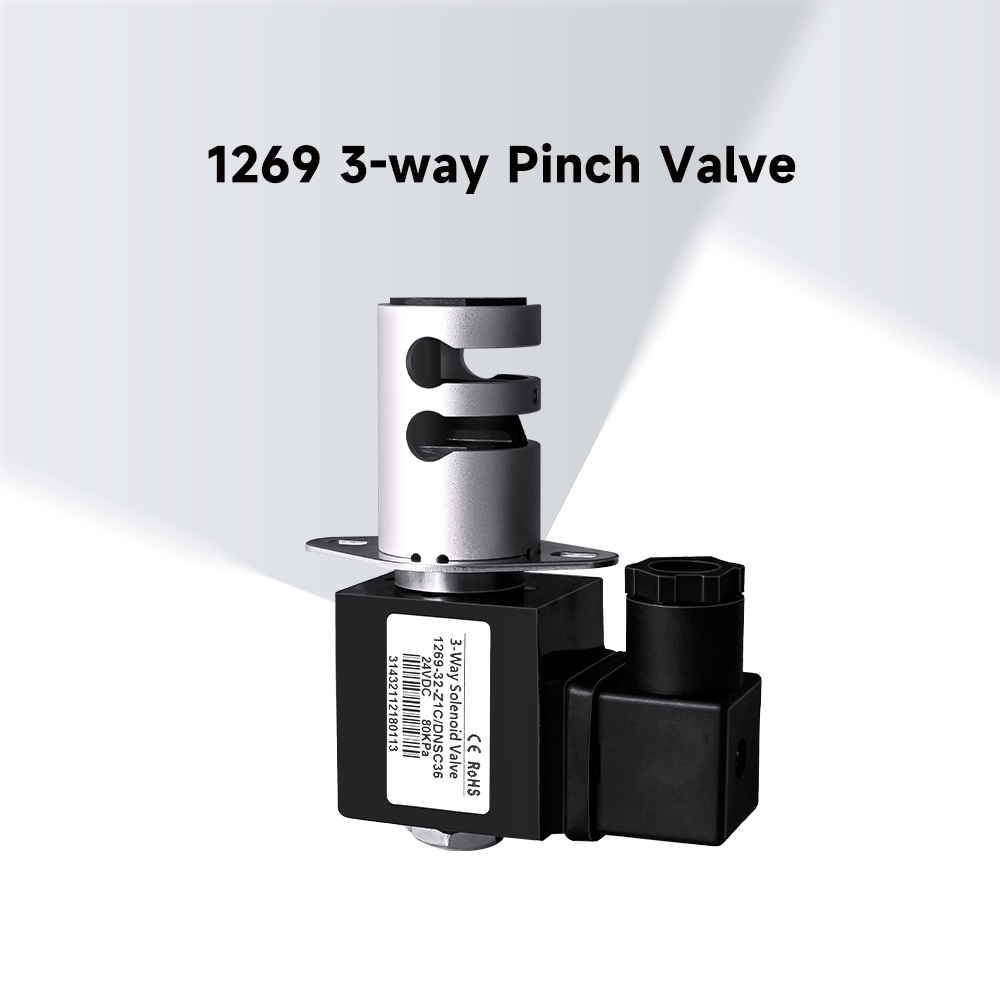

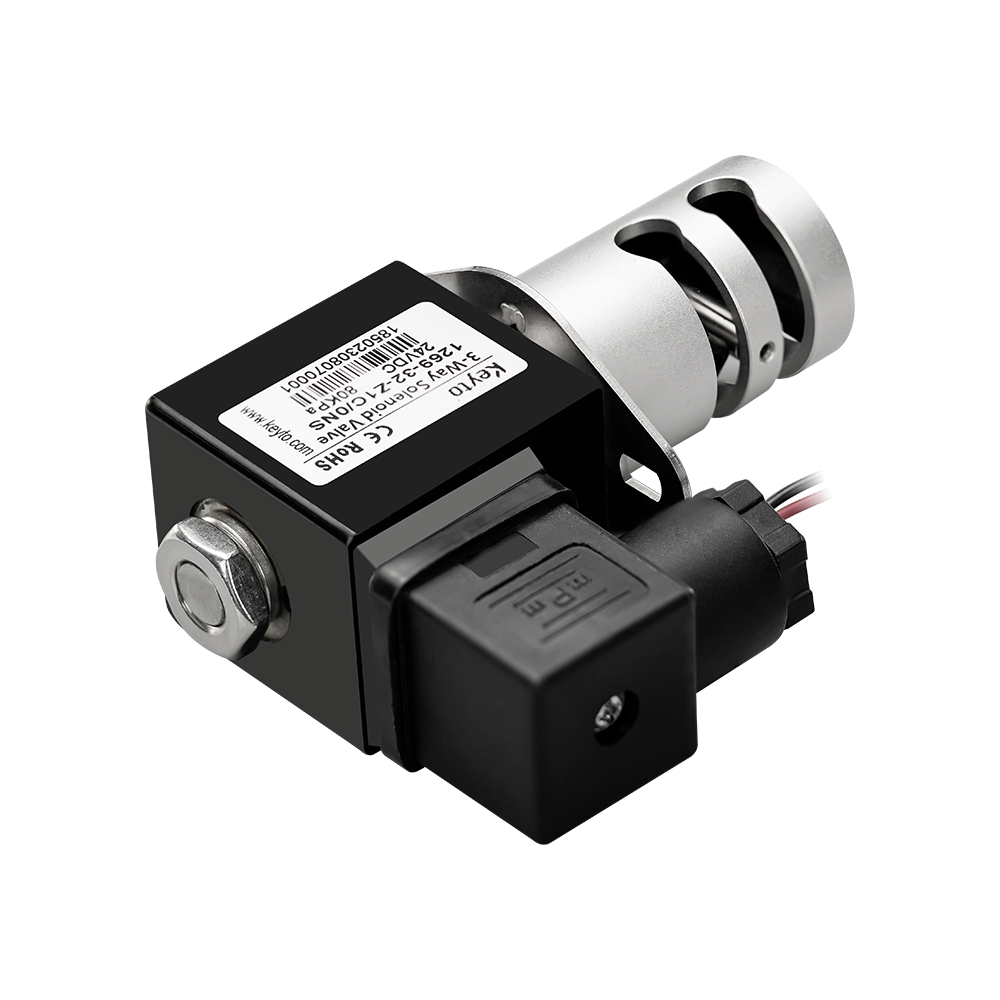

1269 3-way Pinch Valve
1269 3-way Pinch Valve
The 1269 series solenoid valve is a single-channel pinch valve with a large pipe diameter, designed based on customer requirements. With a service life of over 2 million cycles, it offers high performance and low cost. Its simple and easy-to-clean tubing design effectively handles samples containing impurities or particles. This valve is ideal for applications demanding reliable flow path control with minimal maintenance.
Key Parameters:
Voltage
Fixing method
Reference Model:
1269-3
WhatsApp Contact
Online Message
Model Comparison
1269 3-way Pinch Valve
Comparable Products
1213 3-Way Pinch Valve
1224 2-way N.C. Pinch Valve
1224 2-way N.O. Pinch Valve
1269 2-way Pinch Valve
1212 3-way Pinch Valve
Model Comparison
Back
Overview
Parameters

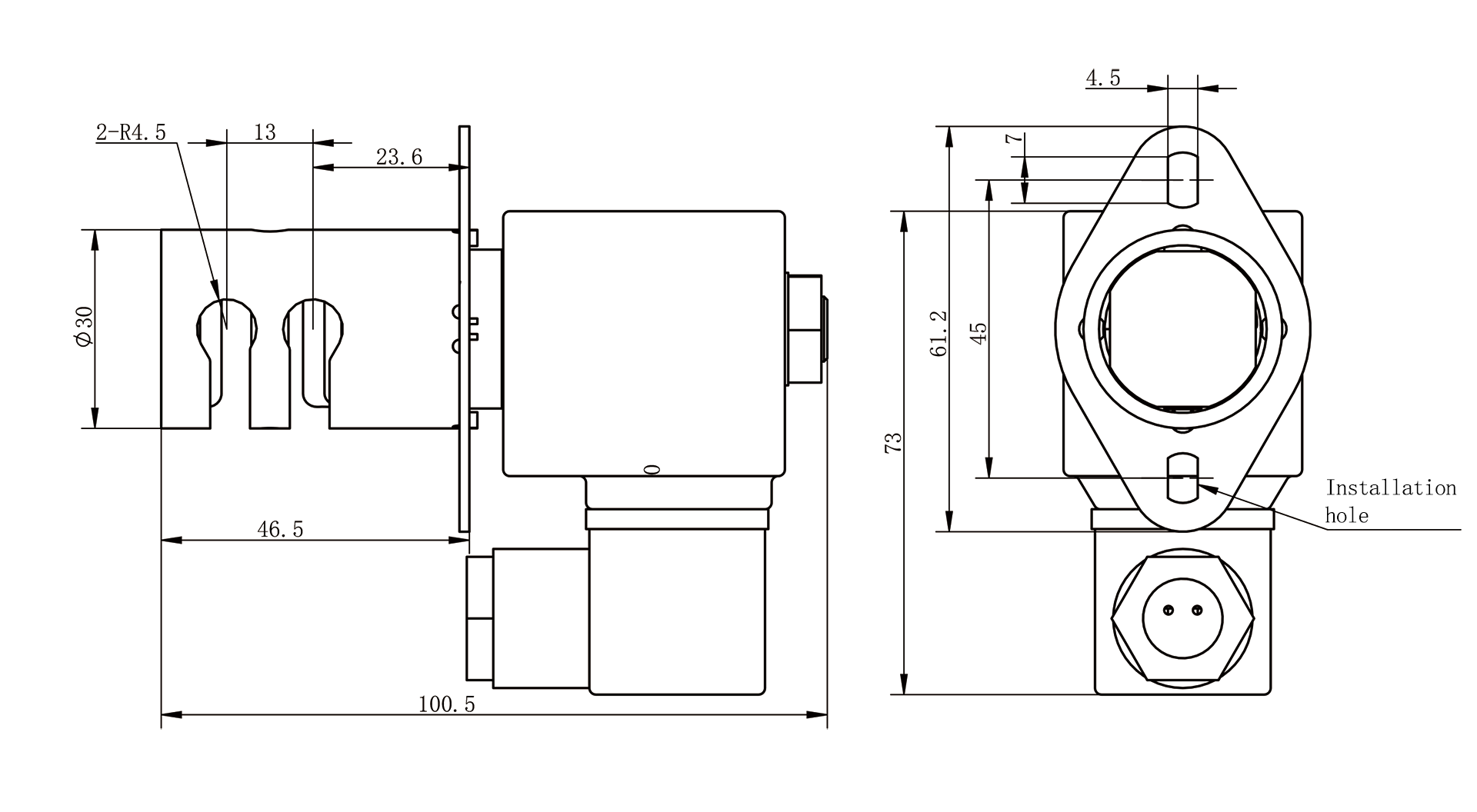

2D View
3D View

Valve Type

Normally Closed Pinch Valve

Orifice Diameter

6 mm

Tubing Specification

6 mm × 9 mm (imported silicone tubing)

Recommended Tubing Hardness

Shore Hardness A: 60

Pressure Resistance

0 ~ 80 kPa

Power Consumption

12 W

Dimensions

100.5 mm × 73 mm

Note

For reference only. The parameters above have been simplified. Please contact our sales team for detailed specifications.
