Heater-cooler Thermoblock
Heater-cooler Thermoblock

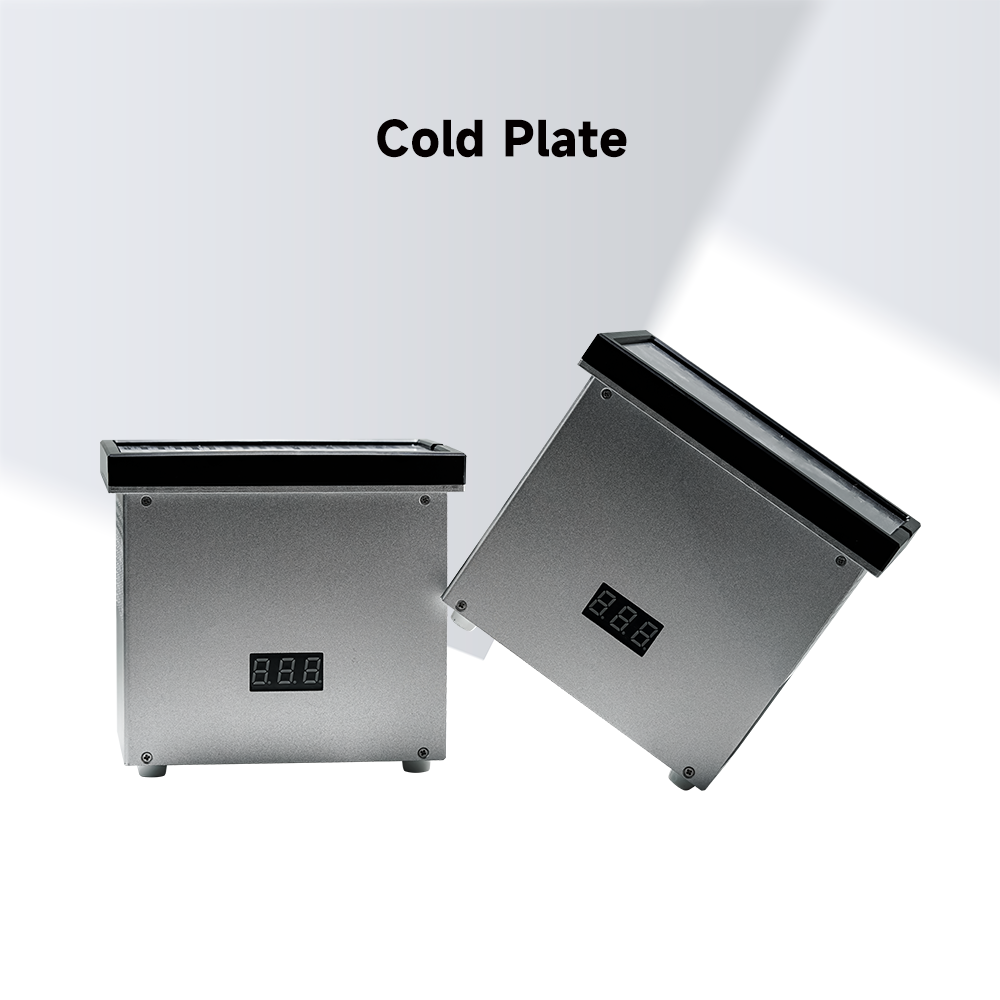

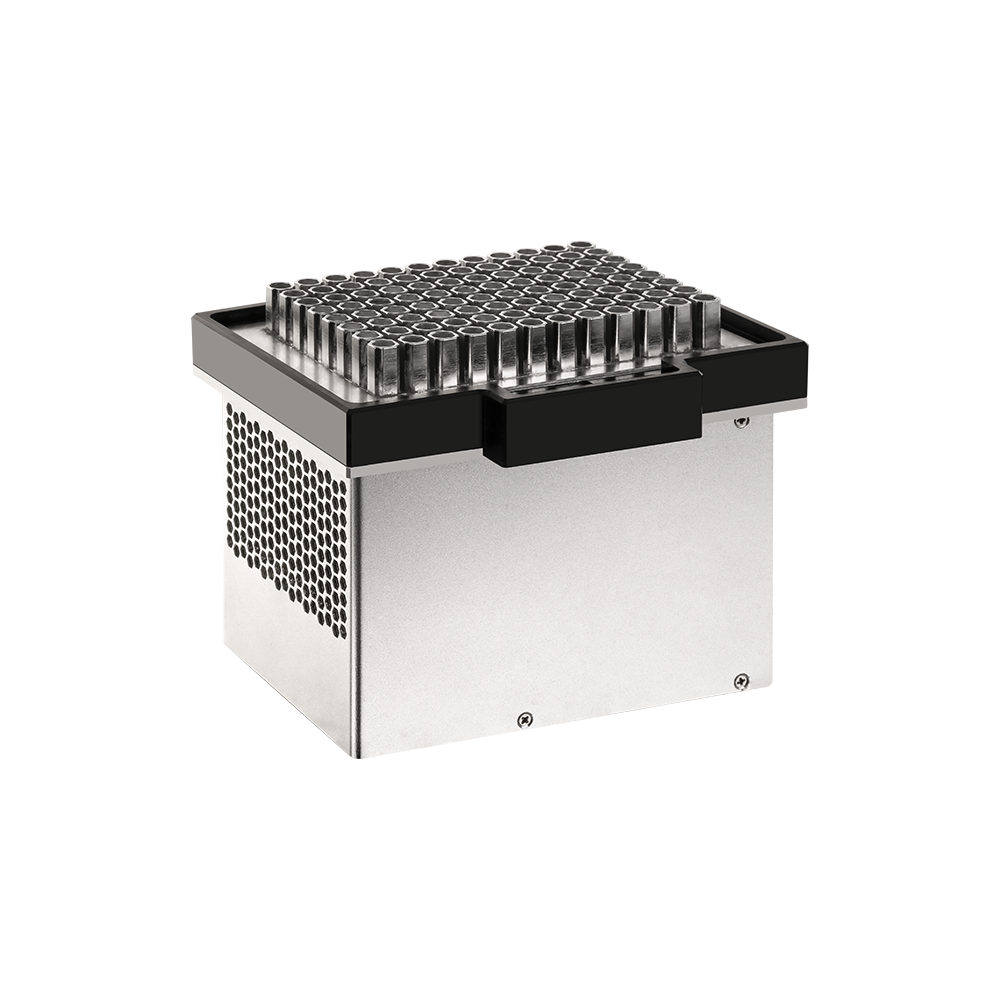

Cold Plate delivers precise 0-100℃ temperature control by using peltier technology, integrated driving controller with CAN/RS485 interfaces, The base dimensions compliant with standard SBS specifications ensure seamless integration into laboratory equipment, Exchangeable adapters provides unmatched benefits for flexible applications.
Key Parameters:
Temperature control range
Use method
Reference Model:
KT-HC
WhatsApp Contact
Online Message
Comparison/Performance
Heater-cooler Thermoblock
Comparable Products
Comparison/Performance
Back

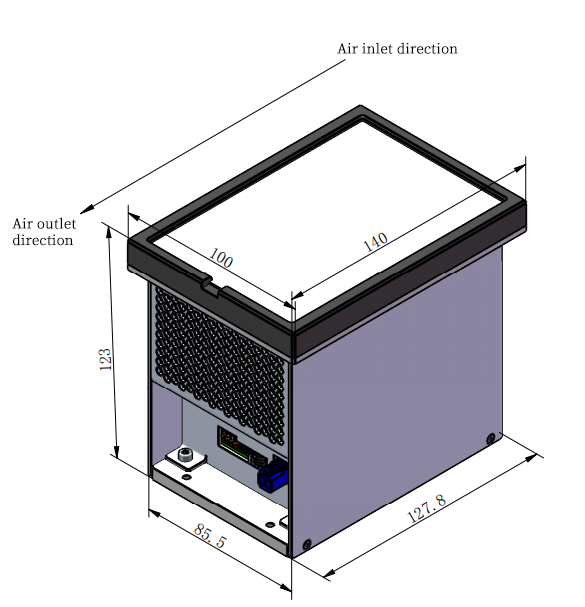

Drawings
Specifications
Overview
2D View
Temperature control range 0-100°C
Temperature uniformity +0.2°C@37°C;+0.8°C@4-95°C
Temperature accuracy +0.2°C@37°C;0.6C@4-95°C
Temperature control volatility 土0.1°C
Temperature reduction rate 95-4°C<10min
Temperature increase rate 4-95°C<8min
Temperature display accuracy 0.1°C
Communication CAN、RS485
Voltage 24V DC土10%
Power 200W
Fixing method Mode 1: Two M3 screws fixing
Mode 2: Fixed by mounting spring
Size 140*100*123
Demo video
Product video
Factory video
