Air Displacement Pipettes-Z axis

Specifications

Overview

Product	ADP-Z180-S-0
Maximum Speed	180 mm/s
Maximum Stroke	180 mm
Weight	350 g / 410 g (including cable)
Maximum Operating Noise	≤ 65 dB (A)
Dimensions	302.5 mm × 78 mm × 20.4 mm (excluding cable)
Multi-channel Tip-to-tip Spacing	Minimum 9 mm with SADP16, 18 mm with SADP18
Communication Interface	RS232, CAN, RS485 (when used with our SADP products)
Baud Rate	CAN: 100K, 125K, 250K, 500K (default), 1000K Serial: 9600, 19200, 38400 (default), 115200
Maximum Thrust	3kg
Drive System	Stepper motor with lead screw
Operating Temperature	+15°C to +35°C
Power Input	24V DC
Service Life	1,000,000 cycles
Maximum Load	410 g

Product Overview

The Z-axis is designed to carry pipette products, providing high-precision vertical movement with a maximum stroke of 180mm. The Z-axis typically integrates with SADP (Superb Air Displacement Pipette) units and supports RS232 and CAN communication protocols. When connected to SADP, it also supports RS485 communication. For optimal communication reliability, CAN interface is recommended as the preferred communication protocol.

Key Features of Z-axis

Versatile Mechanical Design Features unique mechanical structure compatible with multiple Keyto SADP models. When SADP is loaded with tips, achieves vertical movement with minimum 9mm tip-to-tip spacing.

High-Speed Performance Maximum operating speed up to 180mm/s.

Powerful Vertical Force Provides up to 3kg vertical thrust force for tip pickup operations.

Secure Self-Locking Maintains vertical self-locking capability under power-off conditions when loaded with 410g payload.

Precision Movement Achieves movement accuracy within ±0.2mm.

Multi-Protocol Communication Supports RS232 and CAN communication protocols; enables RS485 communication when paired with SADP.

Comprehensive Compatibility

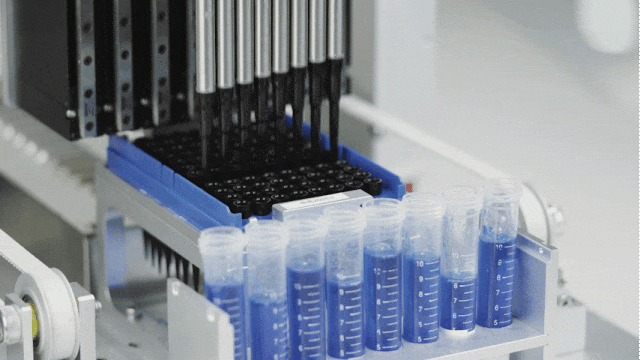

SADP16 Integration: Supports single, dual, quad, and 8-channel pipetting applications
SADP18 Integration: Supports single, dual, and quad pipetting applications
SADP20 Integration: Supports single and dual pipetting applications
SADP28 Integration: Supports single and dual pipetting applications
