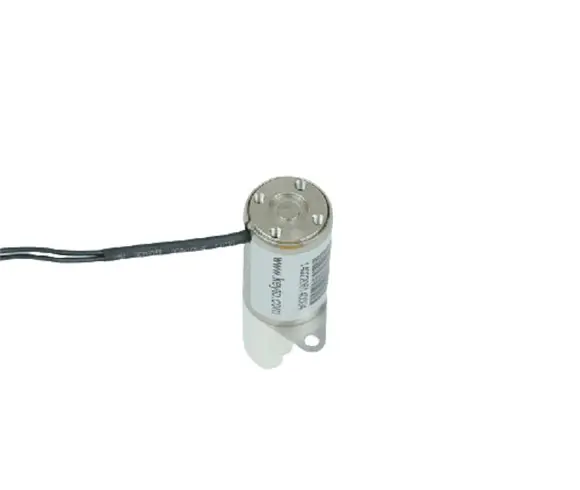

Pinch Valve 1213

The solenoid valve of 1213 series is a family of dual channel pinch valves. This series solenoid valve is a high performance, low cost and maintenance free pinch valve with multiple model options, controlling the switch of flow path for different types of tube.

The life cycle of valves can be operated more than 2 million. The tubing of solenoid valve is simple and easy to clean, applying to the application that samples are with impurities and particulate matters and can avoid cross-contamination among samples.

Specifications Selection Table

Feature of Pinch Valve 1213

Keyto pinch valve has three series. The mainly different is the port size. The port size means the pipe diameter you want to used.

In addition to port size, we have many functions to choose from. like single port or dual port,and different installations and different voltage to meet your unique needs.




Specifications of Pinch Valve 1213

Valve Type

Dual channel pinch valve

Orifice Diameter

1.5mm

Silicon Tube

Specification

1.5mm×3mm(Imported silicone tube)

Recommended Silicon

Tube Hardness

Shore hardness A:(60)

Pressure

-70KPa~200KPa

Power Consumption

24V/12W,12V/14W

Life time

2 million times

Power Consumption

3.5W

Continuous power life

one week

Standard connection

mPm connection

Overall Dimension

22mm×60.7mm (bottom mounting/ bracket mounting)


Note: Please kindly reach out to our sales team for design and specification final clarification and confirmation.



Reasons to Buy Keyto Pinch Valve 1213

  • 01
    Silicon tube specification

    1.5mm X 3mm; shore hardness: 60.

  • 02
    Flow capacity of 1.5mm X 3mm silicon tube

    CV≥0.05, flow≥5.0mL/s(differential pressure 50KPa, 25℃, pure water).

  • 03
    Silicon tube depends

    Wetted material depends on the silicon tube.

  • 04
    Performance characteristics

    Long lifetime, high performance.
